Safety glass panel PLANITHERM® ONE

solar controllow-einsulating

Summary
PLANITHERM® ONE is a high-performance low-emissivity coated glass designed for assembly in insulating (double) glazing. Improved thermal insulation in insulating glass: Ug = 1.0 W/(m2.K).

Composition and principle
The product consists of clear glass coated with a thin transparent noble-metal layer deposited by magnetron sputtering in vacuum. The coating reflects thermal infrared radiation and limits heat loss by radiation.

Applications

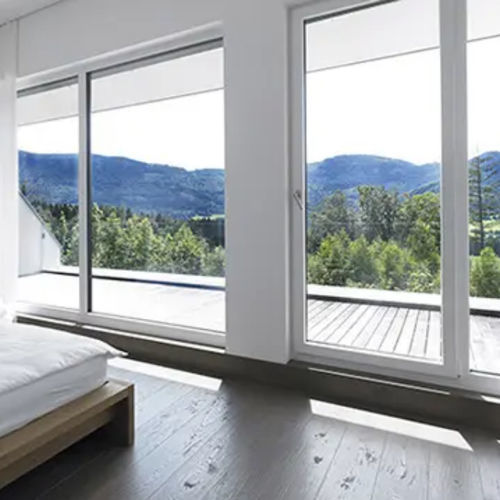

• Windows and French doors in residential buildings
• Conservatories and loggias
• Windows and façades of non-residential buildings

Benefits

• Energy savings: Reduced heating costs through improved insulation. When used in insulating glass with a warm-edge spacer it further enhances overall window performance.
• Improved indoor comfort: More uniform heat distribution with fewer cold spots near glazing and lower risk of condensation on the inner pane.
• Architectural freedom: Neutral appearance in transmission and reflection with a slightly glossy finish for refined aesthetics.
• Environmental benefits: Reduced CO2 emissions.

Range and versions
PLANITHERM® ONE is available in 6000 x 3210 mm sheets and in thicknesses 4, 6, 8 and 10 mm. PLANITHERM® ONE II is the tempered version of PLANITHERM® ONE and must be tempered to achieve equivalent solar and thermal characteristics.

Performance and assembly
PLANITHERM® ONE must be assembled in insulating glass. Its coating is edged at the periphery and must be positioned on face 3. PLANITHERM® ONE can be laminated before assembly into insulating glass.

Functional compatibility
An insulating unit with PLANITHERM® ONE can be combined with other functions:

• BIOCLEAN® (self-cleaning)
• COOL-LITE® ST (solar control)
• STADIP® PROTECT (safety)
• STADIP® SILENCE (acoustic insulation)

Technical characteristics / specifications

• Thermal coefficient (example composition): insulating glass 4-16 argon-4 mm → Ug = 1.0 W/(m2.K)
• Glass type: clear glass with a thin transparent noble-metal coating
• Deposition method: magnetron sputtering in vacuum (thin metallic coating)
• Assembly condition: coating edged at the periphery, positioned on face 3, to be assembled in insulating glass
• Lamination option: can be laminated before insulating glass assembly
• Available dimensions: sheet 6000 x 3210 mm
• Available thicknesses: 4 mm, 6 mm, 8 mm, 10 mm
• Tempered version: PLANITHERM® ONE II (to be tempered to obtain equivalent performance)
• Compatibility with additional functions: BIOCLEAN®, COOL-LITE® ST, STADIP® PROTECT, STADIP® SILENCE
