Safety glass panel CLIMAPLUS® SCREEN

solar controlinsulatingacoustic

Description

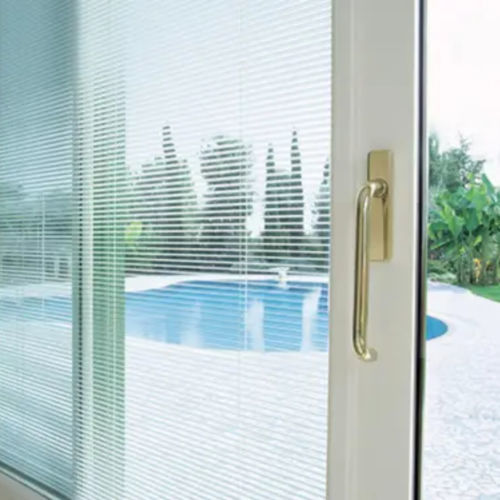

CLIMAPLUS® SCREEN is a range of insulating double glazing from Saint‑Gobain Glass integrating aluminium venetian blinds between the two panes. The blinds are liftable and tiltable to provide solar protection and privacy. They are available with manual or electric operation depending on the version and are protected inside a hermetic cavity to prevent dust and oxidation.

Range
CLIMAPLUS® SCREEN belongs to the "Les Engagés" range, which groups solutions performing on environmental impact, health and user/installers' well‑being. Each product excels in at least one of Saint‑Gobain's sustainable construction pillars: energy & carbon, resource & circularity, health & well‑being.

Applications
Practical and aesthetic, CLIMAPLUS® SCREEN suits many applications in new build and renovation:

• Building façades: offices, hospitals, schools, etc.
• Windows, glazed bays and conservatories.
• Interior partition glazing (in this case, enhanced thermal insulation and solar control coated glass may not be required).

Compatibilities and options
CLIMAPLUS® SCREEN can be combined with solar control coated glass (e.g. ECLAZ® for residential or COOL‑LITE® for commercial). Options can be combined with safety (STADIP® PROTECT), acoustic (STADIP® SILENCE) and easy‑clean (BIOCLEAN®) functions.

Installation and constraints
Used on fixed vertical frames, sliding frames and vertical opening sash frames (including single or double casement, tilt‑and‑turn or Italian‑style with maximum 15° opening from vertical). The glazing is installed with a rebate bite on all four sides. A full project study is required to size the glazing according to geographic location and building characteristics.

Advantages
CLIMAPLUS® SCREEN offers multiple benefits for users and projects:

• Natural light and visual comfort: liftable and tiltable blinds control light and reduce glare while maintaining outward view and privacy.
• Solar modulation: integrated blinds adjust solar radiation via slat position, improving summer comfort while retaining view and brightness.
• No additional maintenance: the hermetic cavity protects the blinds from dust, reducing maintenance and contamination risks (relevant in healthcare environments).
• Aesthetics: discreet horizontal blinds offering outward view; available in 9 shades to suit projects.

Performance and product features
Main performances and variants available for CLIMAPLUS® SCREEN (e.g. white blind reference 102) include:

• CLIMAPLUS® SCREEN 27M: glazing up to 3 m high, compatible with building automation and validated by Technical Assessments. Quiet integrated motor in the glazing, controllable via smartphone or BMS. Automatic adjustment possible based on sun path, indoor temperature or other parameters.
• CLIMAPLUS® SCREEN C: version with external frame control (manual or external motorised) avoiding glazing penetration via a magnetic mechanism; control by switch or remote, manual slat orientation by cord, rod or knurled knob depending on the case.
• Manufacturing and durability: CEKAL‑certified assembly; hermetic cavity protecting the blind (preventing oxidation). Component reliability (motor and accessories) tested over many cycles.

Characteristics / technical specifications

• Blind type: aluminium venetian blinds, liftable and tiltable.
• Operation: manual or electric (integrated motor for some versions or external motorisation in the C version).
• Main versions: CLIMAPLUS® SCREEN 27M (integrated motor, up to 3 m height), CLIMAPLUS® SCREEN C (external frame control, magnetic).
• Home/building automation compatibility: controllable by smartphone, BMS and other systems; automatic settings possible (sunlight, temperature, etc.) for some versions.
• White blind reference mentioned: 102 (related performance/documentation).
• Certifications and validations: CEKAL for assembly; some glazings validated by CSTB with Technical Assessment (Avis Technique).
• Protection and durability: blind protected in a hermetic cavity (protection against dust and oxidation).
• Combinable options: safety (STADIP® PROTECT), acoustic (STADIP® SILENCE), easy‑clean (BIOCLEAN®).
• Finishes and variants: blinds available in 9 shades (colour range available).
• Compatible frame types: fixed vertical frames, sliding frames, vertical opening frames (casement, tilt‑and‑turn, Italian up to 15°).
• Installation: rebate bite on all four sides; sizing according to project study and geographic situation.
