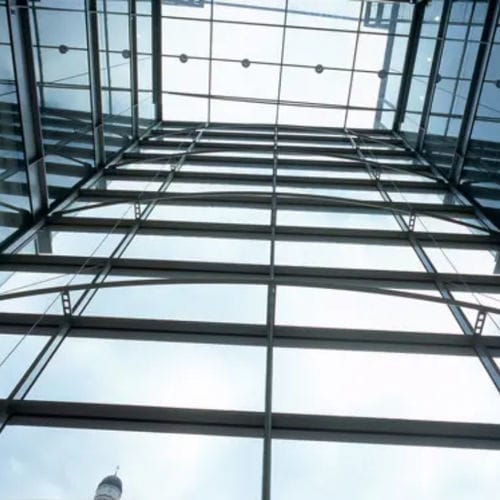

Safety glass panel CLIMAPLUS® - CLIMATOP

low-einsulatingacoustic

Description
Double and triple glazing designed to combine thermal insulation and high light transmission while maintaining a neutral appearance and attractive aesthetics. CLIMAPLUS® and CLIMATOP meet these objectives for residential and architectural applications.

Composition of the CLIMAPLUS double glazing

• One PLANICLEAR® glass pane
• A 16 mm spacer filled with argon (noble gas) for enhanced thermal insulation
• A coated glass on the cavity side with a metallic layer applied by magnetron sputtering under vacuum: ECLAZ® ZEN or ECLAZ LUMI®
• Assembly of the two panes using a double sealing barrier

Composition of the CLIMATOP triple glazing

• Two outer panes (1 and 3) coated on the cavity side with a metallic layer deposited by magnetron sputtering: PLANITHERM® XN or ECLAZ LUMI®
• A double 16 mm spacer filled with argon (noble gas) for enhanced thermal insulation
• One central PLANICLEAR® glass pane
• The three glass panes are assembled with double sealing barriers

Applications

• Renovation and new build
• Houses
• Apartments
• Public buildings
• Offices

Benefits

• Energy efficiency: combination of strong thermal performance and high light transmission to reduce heating demand and CO2 emissions
• Visual comfort: high light transmission levels (up to 83% for double glazing and up to 77% for triple glazing depending on version) with neutral colour rendering
• Thermal comfort: very low U-value for CLIMATOP (down to 0.6 W/m².K) limiting heat losses

Performance (example configurations and values)
Columns: CLIMAPLUS® XN | CLIMAPLUS® ECLAZ | CLIMATOP XN | CLIMATOP ECLAZ
Glass 1: ECLAZ® ZEN 4 mm | PLANICLEAR® 4 mm | PLANITHERM® 4 mm | ECLAZ® 4 mm
Spacer 1: Argon 90% 16 mm | Argon 90% 16 mm | Argon 85% 16 mm | Argon 85% 16 mm
Glass 2: PLANICLEAR® 4 mm | ECLAZ® LUMI 4 mm | PLANICLEAR® 4 mm | PLANICLEAR® 4 mm
Spacer 2: (—) | (—) | Argon 85% 16 mm | Argon 85% 16 mm
Glass 3: (—) | (—) | PLANITHERM® 4 mm | ECLAZ® LUMI 4 mm
Transmission TL (%): 80 | 83 | 74 | 77
External reflection RLext (%): 15 | 12 | 14 | 14
g (solar factor): 0.53 | 0.71 | 0.54 | 0.60
U-value (W/m².K): 1.0 | 1.1 | 0.6 | 0.6

Range and options
CLIMAPLUS® / CLIMATOP can be combined with other solutions (e.g. laminated safety glass, acoustic glass, self-cleaning coatings) and is available in a temperable version without modification of technical characteristics or appearance.

Characteristics / technical specifications

• Product types: double glazing (CLIMAPLUS®) and triple glazing (CLIMATOP)
• Glasses used: PLANICLEAR®, PLANITHERM®, ECLAZ® ZEN, ECLAZ LUMI®
• Spacer: 16 mm (configurations with one or two spacers depending on double/triple glazing)
• Spacer filling: Argon (85% or 90% depending on configuration)
• Assembly: double sealing barriers
• Light transmission (TL): up to 83% (double) / up to 77% (triple) depending on version
• Solar factor g: examples 0.53 — 0.71 depending on configuration
• External reflection (RLext): typ. 12–15% depending on version
• U-value (W/m².K): examples 1.0 / 1.1 for some double glazing, down to 0.6 for CLIMATOP
• Typical applications: windows, glazed bays, conservatories, façades and curtain walls
