Galvanised steel suspended ceiling VERT VISIO

aluminiumpanelindoor

Description

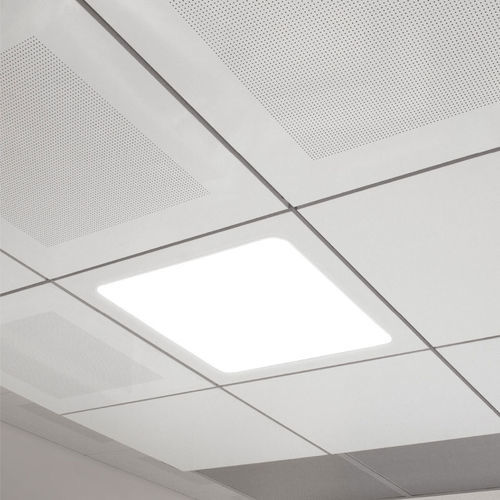

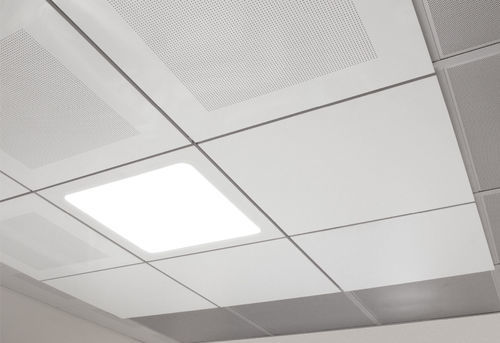

VERT VISIO is a modular suspended (false) ceiling system designed for architectural interiors. Laid on an inverted T framework, it offers fast installation and highlights the texture of the structural grid. Available in aluminium and galvanized steel with plain or perforated finishes, VERT VISIO is specified for projects requiring modularity and refined ceiling appearance.

Finishings
Standard colours: Prepainted White, Silver, Mirror aluminium. Post-painted finishes available in RAL and NCS; sublimated finishes available on request.

Modules

• 600x600 mm plain edge
• 600x1200 mm plain edge
• 300x300 mm plain edge
• 300x1200 mm plain edge

Installation
The panels are laid on an inverted T-structure for quick, reproducible installation. The system is engineered to emphasise the structural mesh and simplify maintenance access.

Technical specifications
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colours: Prepainted White • Silver • Mirror aluminium; Post painted: RAL - NCS - Sublimated
Standard materials: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
Standard thickness: 0.4 - 0.5 - 0.6 mm
Standard modules: 600x600 mm, 600x1200 mm, 300x300 mm, 300x1200 mm (plain edge)
Average system weight: 4-5 kg/mq

Characteristics / technical specifications

• European regulation: CE - EN 13964
• Durability: Class B
• Fire resistance: A1
• Acoustic absorption: EN ISO 354
• Standard colours: Prepainted White, Silver, Mirror aluminium; Post painted: RAL - NCS - Sublimated
• Standard materials: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
• Standard thickness: 0.4 mm, 0.5 mm, 0.6 mm
• Standard modules: 600x600 mm, 600x1200 mm, 300x300 mm, 300x1200 mm (plain edge)
• Average system weight: 4-5 kg/mq
