Galvanised steel suspended ceiling VERT FLAT

aluminumpanelfor office

Product overview

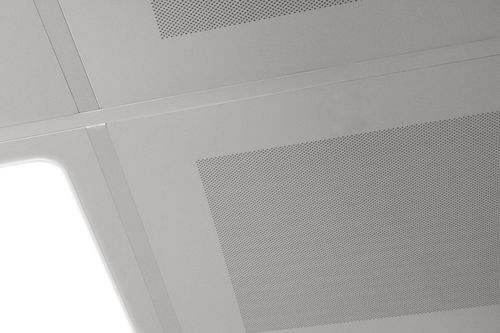

VERT FLAT is a modular suspended ceiling panel designed to sit on an inverted T structure. The panel is shaped so its visible surface is coplanar with the supporting grid, creating a streamlined appearance of the modular track. Available in aluminium and galvanized steel and suitable for standard modular installations.

Finishings
Standard prepainted colours: Prepainted White DONN-WHITE, Silver and Mirror aluminium. Post-painted finishes available on request in RAL, NCS and sublimated options.

Materials
Standard materials: Aluminium (Alloy 3000H46) and Galvanized steel (DX51DZ). Available thicknesses: 0.4 mm, 0.5 mm and 0.6 mm.

Modules
Standard module: 600x600 mm plain edge. Multiple modular configurations can be arranged for installations and compositions.

Accessories
Complementary components and accessories are supplied to complete the suspended ceiling system, including fixing, integration and finishing elements.

Installation
Installation: the panel rests on the inverted T profile and is positioned so the visible panel surface is flush with the supporting structure, ensuring a clean, leveled appearance of the ceiling line.

Technical specifications

• European regulation: CE - EN 13964
• Durability: Class B
• Fire resistance: A1
• Acoustic absorption: EN ISO 354
• Standard colour: Prepainted White DONN-WHITE • Silver • Mirror aluminium; Post painted: RAL - NCS - Sublimated
• Standard material: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
• Standard thickness: 0.4 - 0.5 - 0.6 mm
• Standard modules: 600x600 mm plain edge
• Average system weight: 4-5 kg/m²
