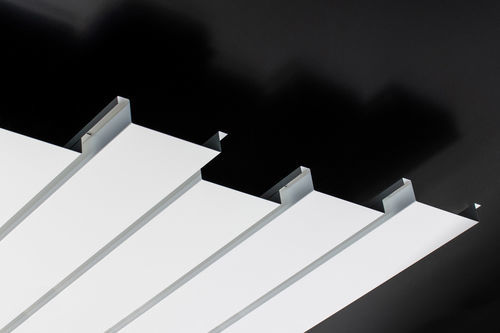

Galvanised steel suspended ceiling D

aluminumstripindoor

Overview The D STRIP is a perimeter ceiling profile that creates a planked aesthetic using only perimeter profiles without carriers. It delivers a defined visual layout suited to environments such as medium-width corridors. Material choices and production technology provide high resistance and long service life.

Technical specifications European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colours: Silver, White, AISI (stainless look), Post-painted
Finishing: Smooth, Perforated
Standard materials: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
Standard thicknesses: Aluminium 0.5 / 0.6 / 0.8 mm; Steel 0.4 / 0.5 / 0.6 mm

Dimensions Available section variants: D100 (100x25 mm), D150 (150x25 mm), D200 (200x25 mm), D300 (300x25 mm).

Finish Surface options: smooth or perforated. Standard colours: silver, white, AISI (stainless look) or post-painted finishes.

Technical data

• European regulation: CE - EN 13964
• Durability: Class B
• Fire resistance: A1
• Acoustic absorption: EN ISO 354
• Standard colours: Silver, White, AISI, Post-painted
• Finishing: Smooth, Perforated
• Standard materials: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
• Standard thicknesses: Aluminium 0.5 / 0.6 / 0.8 mm; Steel 0.4 / 0.5 / 0.6 mm
• Standard dimensions: D100 (100x25 mm), D150 (150x25 mm), D200 (200x25 mm), D300 (300x25 mm)
