Galvanised steel suspended ceiling VERT OCCULTOaluminiumpanelfor office
Add to favorites
Compare this product
Characteristics
- Material
- aluminium, galvanised steel
- Type
- panel
- Room/use
- for office, for conference rooms, for clean rooms
- Location
- for indoor use
- Technical characteristics
- acoustic, Euroclass A1
- Aesthetics
- decorative, perforated
- Market
- commercial, for open plan areas
- Color
- white, silver-colored
- Width
300 mm, 600 mm
(12 in, 24 in)- Length
300 mm, 600 mm, 1,200 mm
(12 in, 24 in, 47 in)- Thickness
0.4 mm, 0.5 mm, 0.6 mm
(0.016 in, 0.02 in, 0.024 in)
Description
Overview

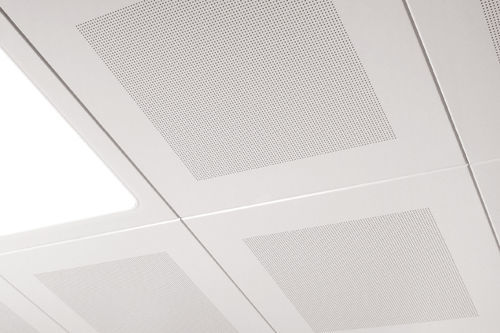

VERT OCCULTO is a concealed false ceiling system with three types of supporting structures. It delivers a perfectly planar, seamless appearance by hiding the supporting elements from view. Panels are available in smooth or perforated finishes and are manufactured in aluminium and galvanized steel. The system is designed for fast, straightforward installation in commercial and institutional buildings.
Technical specifications
Finishings
Modules
Accessories
Accessories for the supporting structure and installation are supplied; visual references are available on the product page. No exhaustive textual list is provided.
Installation
The system is simple and quick to install and can be delivered with three different types of supporting structures. Recommended installation sequences and details are illustrated in the product images.
VERT OCCULTO is a concealed false ceiling system with three types of supporting structures. It delivers a perfectly planar, seamless appearance by hiding the supporting elements from view. Panels are available in smooth or perforated finishes and are manufactured in aluminium and galvanized steel. The system is designed for fast, straightforward installation in commercial and institutional buildings.
Technical specifications
- European regulation: CE - EN 13964
- Durability: Class B
- Fire resistance: A1
- Acoustic absorption: EN ISO 354
- Standard colour options: Prepainted White DONN-WHITE; Silver; Mirror aluminium; Post-painted (RAL, NCS, Sublimated)
- Standard materials: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
- Standard thickness: 0.4 - 0.5 - 0.6 mm
- Standard modules: 600x600 mm plain edge; 600x1200 mm plain or beveled edge; 300x300 mm beveled edge; 300x1200 mm beveled edge
- Average system weight: 4–5 kg/m²
Finishings
- Prepainted White DONN-WHITE
- Silver
- Mirror aluminium
- Post-painted finishes (RAL, NCS, Sublimated)
Modules
- 600x600 mm plain edge
- 600x1200 mm plain or beveled edge
- 300x300 mm beveled edge
- 300x1200 mm beveled edge
Accessories
Accessories for the supporting structure and installation are supplied; visual references are available on the product page. No exhaustive textual list is provided.
Installation
The system is simple and quick to install and can be delivered with three different types of supporting structures. Recommended installation sequences and details are illustrated in the product images.
