Galvanised steel suspended ceiling aluminumpanelindoor
Add to favorites
Compare this product
Characteristics
- Material
- galvanised steel, aluminum
- Type
- panel
- Location
- indoor
- Technical characteristics
- acoustic, modular, Euroclass A1
- Aesthetics
- decorative
- Market
- commercial
- Color
- white, silver-colored
- Width
500 mm, 600 mm, 1,000 mm
(20 in, 24 in, 39 in)- Length
500 mm, 600 mm, 1,000 mm
(20 in, 24 in, 39 in)- Thickness
0.4 mm, 0.5 mm, 0.6 mm
(0.016 in, 0.02 in, 0.024 in)
Description
Overview

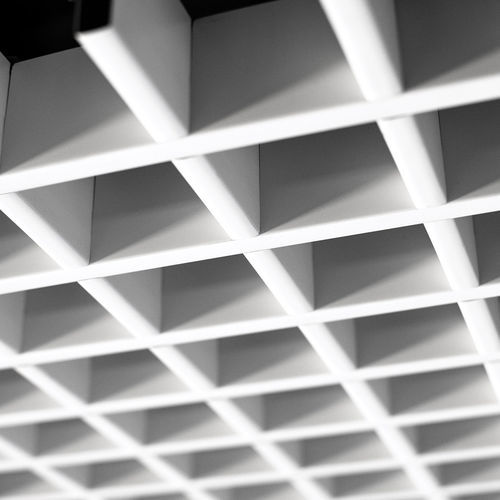

Cell ceiling panels for a classic modular suspended ceiling system installed on an inverted T profile. Designed for straightforward installation on standard T-grid structures. Available in aluminium and galvanized steel.
Mesh
The product features a mesh/grille design as shown in the product imagery, suitable for ventilation and aesthetic applications.
Installation
Intended for installation on inverted T structures (T24/38 or 15/38). Installation diagrams illustrate panel placement and engagement with the T profiles.
Technical specifications
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colour: White, Silver
Standard material: Aluminium (Alloy 310H46); Galvanized steel (DX51DZ100)
Standard thickness: 0,4 - 0,5 - 0,6 mm
Module: 600x600 mm
Average system weight: 4/5 kg/m2
Technical specifications (detailed)
Cell ceiling panels for a classic modular suspended ceiling system installed on an inverted T profile. Designed for straightforward installation on standard T-grid structures. Available in aluminium and galvanized steel.
Mesh
The product features a mesh/grille design as shown in the product imagery, suitable for ventilation and aesthetic applications.
Installation
Intended for installation on inverted T structures (T24/38 or 15/38). Installation diagrams illustrate panel placement and engagement with the T profiles.
Technical specifications
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colour: White, Silver
Standard material: Aluminium (Alloy 310H46); Galvanized steel (DX51DZ100)
Standard thickness: 0,4 - 0,5 - 0,6 mm
Module: 600x600 mm
Average system weight: 4/5 kg/m2
Technical specifications (detailed)
- European regulation: CE - EN 13964
- Durability: Class B
- Fire resistance: A1
- Acoustic absorption: EN ISO 354
- Standard colour: White, Silver
- Standard material: Aluminium (Alloy 310H46); Galvanized steel (DX51DZ100)
- Standard thickness: 0,4 - 0,5 - 0,6 mm
- Module: 600x600 mm
- Average system weight: 4/5 kg/m2
