Galvanised steel suspended ceiling Valuminumstripfor indoor use
Add to favorites
Compare this product
Characteristics
- Material
- aluminum, galvanised steel
- Type
- strip
- Location
- for indoor use
- Technical characteristics
- acoustic, Euroclass A1
- Aesthetics
- decorative
- Options
- linear
- Market
- commercial
- Color
- white, silver-colored
- Width
48 mm, 65 mm, 77 mm
(2 in, 3 in, 3 in)- Length
35 mm, 85 mm, 135 mm
(1 in, 3 in, 5 in)- Thickness
0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm
(0.016 in, 0.02 in, 0.024 in, 0.031 in)
Description
Overview

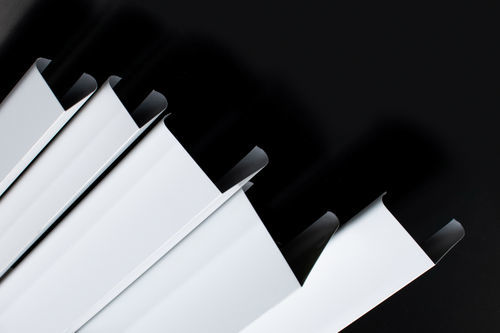

V STRIP is a vertical lamellar ceiling strip designed for suspended ceilings and wall cladding. Mounted vertically, it creates a slim, rhythmic visual with variable pitch while contributing to acoustic control and aesthetic zoning.
Technical specifications (table)
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colours: Silver • White • AISI • post-painted
Finishing: Smooth • Perforated
Standard material: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
Standard thickness: Aluminium 0.5 - 0.6 - 0.8 mm; Steel 0.4 - 0.5 - 0.6 mm
Standard dimensions: V35 - 35x48 mm; V85 - 85x65 mm; V135 - 135x77 mm
Dimensions
Available drawings and dimensional schemes for V35, V85 and V135 profiles to support design, detailing and installation.
Finish
Available finishes: standard colours and post-painted options; smooth and perforated surfaces to satisfy visual, acoustic and maintenance requirements.
Features / Technical specifications
V STRIP is a vertical lamellar ceiling strip designed for suspended ceilings and wall cladding. Mounted vertically, it creates a slim, rhythmic visual with variable pitch while contributing to acoustic control and aesthetic zoning.
Technical specifications (table)
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colours: Silver • White • AISI • post-painted
Finishing: Smooth • Perforated
Standard material: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
Standard thickness: Aluminium 0.5 - 0.6 - 0.8 mm; Steel 0.4 - 0.5 - 0.6 mm
Standard dimensions: V35 - 35x48 mm; V85 - 85x65 mm; V135 - 135x77 mm
Dimensions
Available drawings and dimensional schemes for V35, V85 and V135 profiles to support design, detailing and installation.
Finish
Available finishes: standard colours and post-painted options; smooth and perforated surfaces to satisfy visual, acoustic and maintenance requirements.
Features / Technical specifications
- European regulation: CE - EN 13964
- Durability: Class B
- Fire resistance: A1
- Acoustic absorption: EN ISO 354
- Standard colours: Silver, White, AISI, post-painted
- Finishing options: Smooth, Perforated
- Standard materials: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
- Standard thicknesses: Aluminium 0.5 / 0.6 / 0.8 mm; Steel 0.4 / 0.5 / 0.6 mm
- Standard profile dimensions: V35 (35x48 mm), V85 (85x65 mm), V135 (135x77 mm)
