Product overview

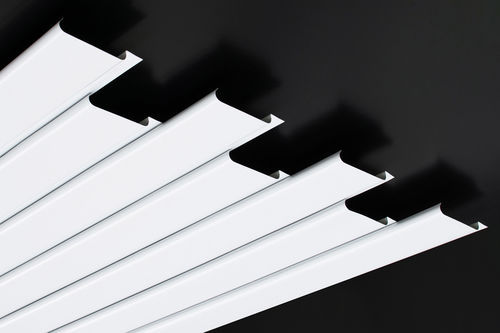

The B STRIP is an edge profile for suspended ceilings and linear ceiling systems. Its rounded profiled edge hooks onto suspended carriers to form a closed joint that conceals gaps while preserving a continuous linear aesthetic. Suitable for interior ceiling terminations and applications requiring a neat visual continuity.

Technical specifications (table)
Compliance: CE - EN 13964
Durability class: Class B
Fire reaction: A1
Acoustic absorption: EN ISO 354
Standard colours: Silver, White, AISI, Post-painted
Finishes: Smooth, Perforated, Corrugated
Materials: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
Thicknesses (standard): Aluminium 0.5 / 0.6 / 0.8 mm; Steel 0.4 / 0.5 / 0.6 mm
Standard references: B100 (100x18 mm), B150 (150x18 mm), B200 (200x18 mm)

Dimensions
Available widths and profiles: B100 (100x18 mm), B150 (150x18 mm), B200 (200x18 mm). Custom dimensions available on request.

Finish
Available surface finishes include smooth, perforated and corrugated. Standard colour options are silver, white, AISI and post-painted. Colour matching and special coatings available upon request.

Drawings and illustrations
Technical drawings, cross-section details and mounting diagrams are provided for each B STRIP profile to assist specification and installation.

Technical characteristics

• European regulation: CE - EN 13964
• Durability: Class B
• Fire resistance: A1
• Acoustic absorption: EN ISO 354
• Standard colours: Silver, White, AISI, Post-painted
• Finishing: Smooth, Perforated, Corrugated
• Standard material: Aluminium (3000H46/1050AH); Galvanized steel (DX51DZ)
• Standard thicknesses: Aluminium 0.5 / 0.6 / 0.8 mm; Steel 0.4 / 0.5 / 0.6 mm
• Standard dimensions: B100 (100x18 mm), B150 (150x18 mm), B200 (200x18 mm)
