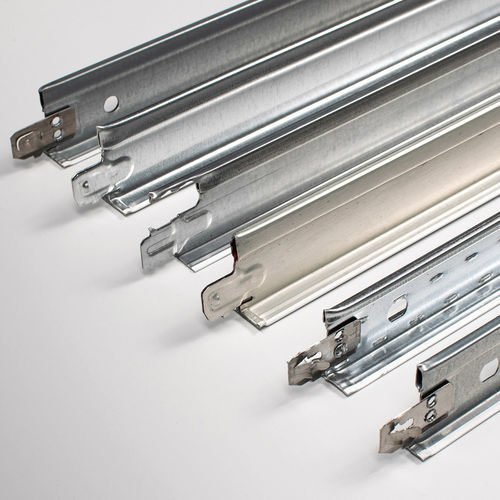

Galvanised steel ceiling suspension system STRUTTURA A T

for indoor usemodularEuroclass A1

Overview
T-Structures for modular false ceilings are a core product in the range, available in multiple versions including earthquake-resistant and demountable suspension systems. Products are CE marked according to EN 13964 and supplied with a Declaration of Performance (DoP) detailing reaction to fire (EN 13501-1), release of hazardous substances, thickness, load, yield strength, durability and flexural class. Combined with appropriate mineral wool or fibre panels, the system can achieve REI120 fire resistance (EN 13501-2). Products have been mapped against LEED credits in cooperation with TUV Italy.

Freccia

• Overlapping profile with "riportato" hook for T24 and T15, designed for metric (mm) and imperial (inch) modules.
• Profile can be assembled and removed without damage to the stainless steel "riportato" hook.
• Standard production uses hot-dip galvanized steel (EN 10346); other steels available per EN 10152 and EN 10169-1. Tolerances and thicknesses checked per EN 10143 / EN 10131 where applicable.

Technical specifications (Freccia)
Structure material: Galvanized steel DX51D+Z100 MAC
Coating material: Pre-painted/zinc plated steel DX51D+Z100 MAC
Hook material: Stainless steel
Connection between profiles: Bearing: arrow pressed hook; Secondary: clip hook
Colour of coating: Pre-painted White DONN-WHITE; Silver / Black; Mirror aluminium
Weight of structure: approx. 1 Kg/m²
Medium load capacity: 52.3 N
Fire reaction: Class A1
Organic coating: Polyester paint 25 μm
Breaking load: 281 N/mm²
Durability: Class B
Flexion class: 1 (UNO) T24; 2 (DUE) T15
Packaging: Cardboard box with plastic strapping
Exposure class: A

X Seismic

• Overlapping profile with "riportato" anti-seismic hook for T24 and T15.
• Main feature: stainless steel hook enabling simple assembly and a secure lock for seismic performance.
• Standard production uses hot-dip galvanized steel (EN 10346); other steels per EN 10152 and EN 10169-1. Tolerances and thicknesses checked per EN 10143 / EN 10131 where applicable.

Technical specifications (X Seismic)
Structure material: Galvanized steel DX51D+Z100 MAC
Coating material: Pre-painted/zinc plated steel DX51D+Z100 MAC
Hook material: Stainless steel
Connection between profiles: Bearing: profile "ricavato" hook; Secondary: "riportato" hook
Colour of coating: Pre-painted White DONN-WHITE; Silver / Black; Mirror aluminium
Weight of structure: approx. 1 Kg/m²
Medium load capacity: 52.3 N
Fire reaction: Class A1
Organic coating: Polyester paint 25 μm
Breaking load: 281 N/mm²
Durability: Class B
Flexion class: 1 (UNO) T24; 2 (DUE) T15
Packaging: Cardboard box with plastic strapping
Exposure class: A

Classic Line

• Overlapping profile with "ricavato" hook for T24 and T15; classic line with reinforced hook for solidity and strength.
• Available in steel and aluminium variants (Aluminium: Alloy 3000H64; pre-painted options available).
• Standard production uses hot-dip galvanized steel (EN 10346); other steels per EN 10152 and EN 10169-1. Tolerances and thicknesses checked per EN 10143 / EN 10131 where applicable.

Technical specifications (Classic Line)
Structure material: Galvanized steel DX51D+Z100 MAC; Aluminium (Alloy 3000H64)
Coating material: Pre-painted/zinc plated steel DX51D+Z100 MAC; Pre-painted aluminium (Alloy 3000H64)
Connection between profiles: Bearing: profile "ricavato" hook; Secondary: clip hook
Colour of coating: Pre-painted White DONN-WHITE; Silver / Black; Mirror aluminium
Weight of structure: approx. 1 Kg/m²
Medium load capacity: 52.3 N
Fire reaction: Class A1
Organic coating: Polyester paint 25 μm
Breaking load: 281 N/mm²
Durability: Class B
Flexion class: 1 (UNO) T24; 2 (DUE) T15
Packaging: Cardboard box with plastic strapping
Exposure class: A

Baionetta

• Jointed profile with "ricavato" hook for T24 (reinforced boss for additional solidity).
• Designed for modules in metric and imperial systems.
• Standard production uses hot-dip galvanized steel (EN 10346); other steels per EN 10152 and EN 10169-1. Tolerances and thicknesses checked per EN 10143 / EN 10131 where applicable.

Technical specifications (Baionetta)
Structure material: Galvanized steel DX51D+Z100 MAC
Coating material: Pre-painted steel DX51D+Z100 MAC
Hook material: "ricavato" hook (bearing and secondary baionetta "ricavato" hook)
Colour of coating: Pre-painted White DONN-WHITE; Silver / Black; Mirror aluminium
Weight of structure: approx. 1 Kg/m²
Medium load capacity: 52.3 N
Fire reaction: Class A1
Organic coating: Polyester paint 25 μm
Breaking load: 281 N/mm²
Durability: Class B
Flexion class: 1 (UNO) T24; 2 (DUE) T15
Packaging: Cardboard box with plastic strapping
Exposure class: A

Characteristics / technical specifications

• CE marking according to EN 13964; Declaration of Performance (DoP) available for product characteristics.
• Fire resistance: REI120 achievable in combination with suitable infill panels (EN 13501-2).
• Structure materials: Galvanized steel DX51D+Z100 MAC; variants in zinc-plated steel and aluminium (Alloy 3000H64) where specified.
• Hook materials: Stainless steel hooks for seismic/riportato functions; "ricavato" hooks for classic bearing connections.
• Coating: Pre-painted White DONN-WHITE; Silver; Black; Mirror aluminium; Polyester paint 25 μm.
• Weight: approx. 1 Kg/m².
• Medium load capacity: 52.3 N.
• Breaking load: 281 N/mm².
• Durability: Class B.
• Fire reaction: Class A1.
• Flexion class: 1 (T24) and 2 (T15).
• Packaging: Cardboard box with plastic strapping.
• Exposure class: A.
