Stainless steel suspended ceiling SPACECRAFT

aluminumpainted steelpanel

Description

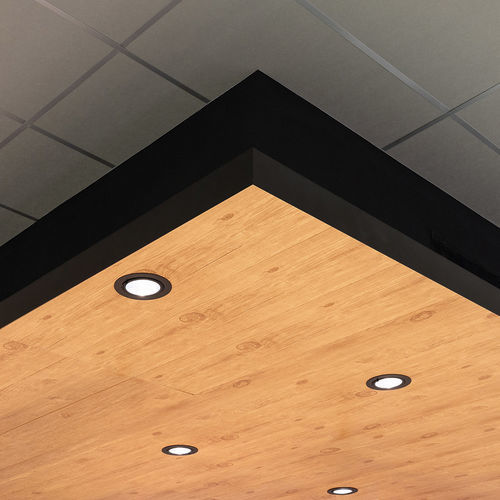

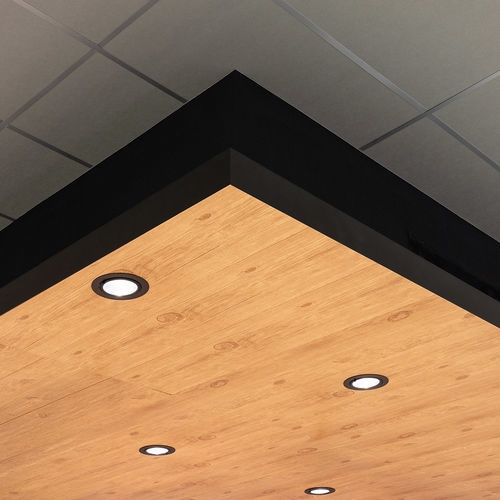

SPACECRAFT is an internal floating ceiling system defined by a perimeter fascia that forms square, rectangular or curved modules. The system accepts Vert Occulto series panels in square or rectangular shapes, with 90° or chamfered edges. Panels are available in aluminium or steel (smooth, perforated or expanded metal). Multiple finishes and custom motifs are possible. Acoustic performance can be enhanced by perforating panels and applying backing layers such as non-woven fabric (TNT), polyester pads or rock wool. SPACECRAFT can be supplied with plenum panels and integrated luminaires while maintaining a uniform finish.

Technical table
Ceiling module: Square / Rectangular / Curved
Panel material: Aluminium (Alloy 3000 H46), Pre-painted steel, Stainless steel
Panel colours: Pre-painted DONN-WHITE, Silver, Post-painted (RAL/NCS), Sublimated, wood-effect, custom motifs
Perimeter fascia colour: Post-painted (RAL/NCS)
Standard thickness: 0.4 mm, 0.5 mm, 0.6 mm
Panel modules: 300x300 mm (90° or chamfered), 600x600 mm (90° or chamfered), 300x1200 mm (90° or chamfered), 600x1200 mm (90° or chamfered)

Modules and lighting
The Vert Occulto LED luminaire provides uniform, flicker-free lighting suitable for environments requiring high visual comfort. The Light Panel (cubic geometry) integrates with the floating system using a facing panel finished to match the ceiling and a four-hole cubic geometry that enhances light distribution and design. The LED downlight is a recessed unit delivering even illumination for functional and ambient lighting.

Finishes
Panels are available in pre-painted (e.g. DONN-WHITE), silver, post-painted (RAL or NCS), sublimated, wood-effect or custom motifs. The perimeter fascia is supplied post-painted to match RAL/NCS specifications.

Characteristics / technical specifications

• Type: floating ceiling system (square, rectangular or curved modules)
• Compatible panel series: Vert Occulto
• Panel materials: Aluminium (Alloy 3000 H46), Pre-painted steel, Stainless steel
• Surface options: smooth, perforated, expanded metal; perforation for acoustic treatment available
• Colours: Pre-painted DONN-WHITE, Silver, Post-painted (RAL/NCS), Sublimated, wood-effect, custom motifs
• Perimeter fascia colour: Post-painted (RAL/NCS)
• Standard thicknesses: 0.4 mm, 0.5 mm, 0.6 mm
• Available panel modules: 300x300 mm, 600x600 mm, 300x1200 mm, 600x1200 mm (90° edge or chamfered)
• Integration options: plenum panels, Vert Occulto LED luminaires, cubic Light Panel, LED downlights
