Galvanised steel suspended ceiling SEMI VISIO

aluminumpanelfor office

Overview

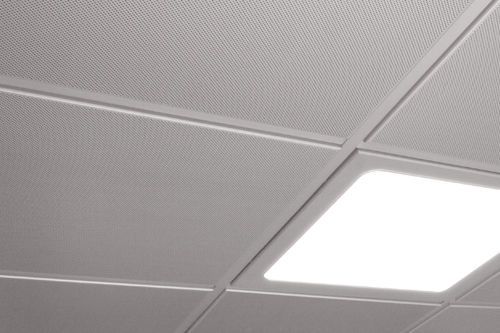

VERT SEMI VISIO is a modular false ceiling system installed on a T-structure. Panels are recessed to create a joint effect with the grid and can be inspected individually by lifting them. The ceiling integrates the SEMIVISIO Led lighting body to ensure visual harmony.

Technical specifications
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colour: Prepainted White DONN-WHITE • Silver • Mirror aluminium; Post painted RAL - NCS - Sublimated
Standard material: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
Standard thickness: 0.4 - 0.5 - 0.6 mm
Standard modules: 600x600 mm beveled or plain edge; 600x1200 mm plain edge
Average system weight: 4-5 kg/mq

Finishings
Standard finishes include Prepainted White DONN-WHITE, Silver and Mirror aluminium. Post-painted finishes available in RAL, NCS and sublimated options.

Modules
Available standard modules are 600x600 mm (beveled or plain edge) and 600x1200 mm (plain edge).

Accessories
Accessories and complementary components are available to complete the system and the installation (illustrated on the product page).

Installation
The system is mounted on a T-structure; panels are lowered to form a joint with the grid and can be lifted for inspection. The SEMIVISIO Led lighting body is integrated into the ceiling.

Technical data

• European regulation: CE - EN 13964
• Durability: Class B
• Fire resistance: A1
• Acoustic absorption: EN ISO 354
• Standard colour: Prepainted White DONN-WHITE; Silver; Mirror aluminium; Post painted RAL - NCS - Sublimated
• Standard material: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
• Standard thickness: 0.4 - 0.5 - 0.6 mm
• Standard modules: 600x600 mm beveled or plain edge; 600x1200 mm plain edge
• Average system weight: 4-5 kg/mq
