Galvanised steel suspended ceiling E
aluminumstripoutdoor

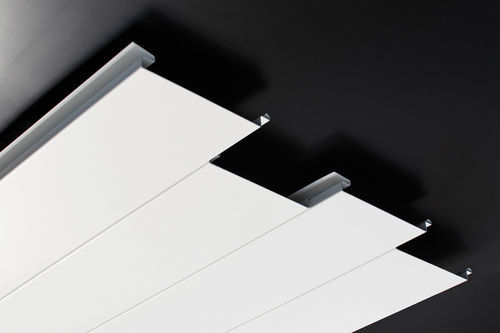

Galvanised steel suspended ceiling - E - Vertebra - aluminum / strip / outdoor
Galvanised steel suspended ceiling - E - Vertebra - aluminum / strip / outdoor
Add to favorites
Compare this product
Go to the Vertebra website for more information

Characteristics

Material
galvanised steel, aluminum
Type
strip
Location
outdoor
Technical characteristics
acoustic, Euroclass A1
Aesthetics
decorative
Market
commercial, home
Color
white, silver-colored
Width

15 mm
(1 in)

Length

150 mm, 200 mm, 280 mm, 300 mm
(6 in, 8 in, 11 in, 12 in)

Thickness

0.5 mm, 0.6 mm, 0.8 mm
(0.02 in, 0.024 in, 0.031 in)

Description

Product overview
E STRIP is a square-edged cladding strip designed for exterior façades and suspended ceilings. It provides a parallel, coplanar aesthetic while meeting wind resistance requirements. Available in aluminium or galvanized steel, with smooth or pleated surface finishes to suit architectural specifications.

Technical specifications
European regulation: CE - EN 13964
Durability: Class B
Fire resistance: A1
Acoustic absorption: EN ISO 354
Standard colour: Silver • White • AISI • Post-painted
Finishing: Smooth (pleated option available)
Standard material: Aluminium (3000H46/1050AH) • Galvanized steel (DX51DZ)
Standard thickness: Aluminium 0.6 - 0.8 mm • Steel 0.5 – 0.6 mm
Standard dimensions: E150 - 150x15 mm • E200 - 200x15 mm • E300 - 300x15 mm • E300 pleated - 280x15 mm

Characteristics / technical specifications
  • Regulation: CE - EN 13964
  • Durability Class: B
  • Fire resistance classification: A1
  • Acoustic standard: EN ISO 354
  • Available materials: Aluminium (3000H46/1050AH), Galvanized steel (DX51DZ)
  • Standard thicknesses: Aluminium 0.6–0.8 mm; Steel 0.5–0.6 mm
  • Finishes: Smooth (surface can also be pleated)
  • Standard colours: Silver, White, AISI, Post-painted
  • Standard dimensions/models: E150 (150x15 mm), E200 (200x15 mm), E300 (300x15 mm), E300 pleated (280x15 mm)
