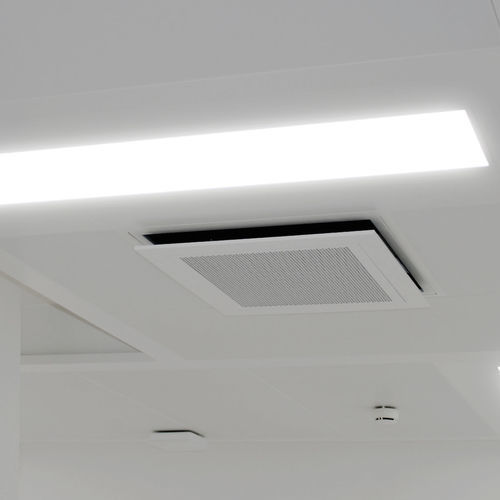

Steel suspended ceiling VERT Z CORRIDORaluminiumpanelfor office
Add to favorites
Compare this product
Characteristics
- Material
- aluminium, steel
- Type
- panel
- Room/use
- for office, for clean rooms, for entryways
- Location
- indoor
- Technical characteristics
- sound-absorbing, modular, Euroclass A1
- Aesthetics
- perforated
- Market
- commercial
- Color
- white, gray, silver-colored, customizable color
- Width
400 mm, 600 mm
(16 in, 24 in)- Length
1,800 mm, 2,500 mm
(71 in, 98 in)- Thickness
0.6 mm, 0.7 mm
(0.024 in, 0.028 in)
Description
Overview
VERT Z CORRIDOR is a modular suspended ceiling system designed for corridors and passageways. Its continuous supporting structure produces a floating-panel aesthetic while allowing inspection and maintenance at any point. The perimeter can be integrated with LED lighting for improved visual effect and functionality. Available in aluminium and galvanized steel with a range of finish options.
Technical specifications
Compliant with CE - EN 13964. Durability: Class B. Fire resistance: A1. Acoustic absorption: EN ISO 354. Standard colours: prepainted DONN-WHITE, Silver, Mirror aluminium; post-painted options: RAL, NCS and sublimation. Standard materials: aluminium (Alloy 3000H46) and galvanized steel (DX51DZ). Standard thickness: 0.6 - 0.7 mm. Standard modules: 600x2500 mm; 400x2500 mm; 600x1800 mm; 400x1800 mm. Average system weight: 4-5 kg/m².
Finishings
Prepainted and post-painted finishings available, including custom RAL, NCS and sublimation options to match project specifications.
Modules
Modular panels are supplied in the standard sizes listed above and are optimised for corridor and passageway installations where continuous visual lines and inspection access are required.
Accessories
Accessory components available to integrate perimeter LED lighting and connection/support elements to achieve the floating panel effect and meet installation requirements.
Installation
The continuous supporting structure permits inspection at any point along the run and supports integration of perimeter LED lighting for both aesthetic and functional applications; installation follows CE - EN 13964 guidelines.
Technical characteristics
VERT Z CORRIDOR is a modular suspended ceiling system designed for corridors and passageways. Its continuous supporting structure produces a floating-panel aesthetic while allowing inspection and maintenance at any point. The perimeter can be integrated with LED lighting for improved visual effect and functionality. Available in aluminium and galvanized steel with a range of finish options.
Technical specifications
Compliant with CE - EN 13964. Durability: Class B. Fire resistance: A1. Acoustic absorption: EN ISO 354. Standard colours: prepainted DONN-WHITE, Silver, Mirror aluminium; post-painted options: RAL, NCS and sublimation. Standard materials: aluminium (Alloy 3000H46) and galvanized steel (DX51DZ). Standard thickness: 0.6 - 0.7 mm. Standard modules: 600x2500 mm; 400x2500 mm; 600x1800 mm; 400x1800 mm. Average system weight: 4-5 kg/m².
Finishings
Prepainted and post-painted finishings available, including custom RAL, NCS and sublimation options to match project specifications.
Modules
Modular panels are supplied in the standard sizes listed above and are optimised for corridor and passageway installations where continuous visual lines and inspection access are required.
Accessories
Accessory components available to integrate perimeter LED lighting and connection/support elements to achieve the floating panel effect and meet installation requirements.
Installation
The continuous supporting structure permits inspection at any point along the run and supports integration of perimeter LED lighting for both aesthetic and functional applications; installation follows CE - EN 13964 guidelines.
Technical characteristics
- European regulation: CE - EN 13964
- Durability: Class B
- Fire resistance: A1
- Acoustic absorption: EN ISO 354
- Standard colour: Prepainted DONN-WHITE; Silver; Mirror aluminium; Post painted RAL - NCS - Sublimated
- Standard material: Aluminium (Alloy 3000H46); Galvanized steel (DX51DZ)
- Standard thickness: 0.6 - 0.7 mm
- Standard modules: 600x2500 mm; 400x2500 mm; 600x1800 mm; 400x1800 mm
- Average system weight: 4-5 kg/m²
