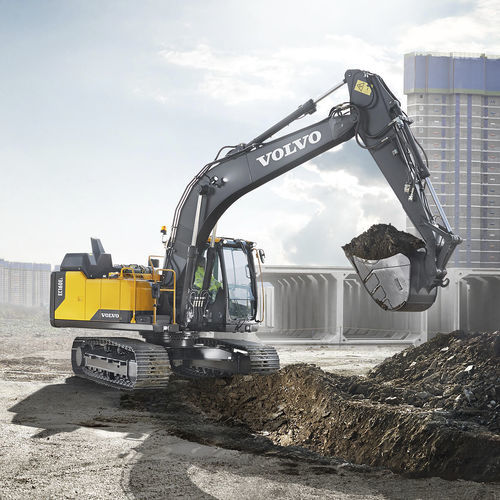

The Volvo EC160E crawler excavator provides a range of new features to ensure efficiency is a key priority when delivering functions. By carefully considering every duty and component, a machine has been produced that incorporates maximum uptime while also reducing fuel consumption and cycle times – all while delivering elite performance.
Operating weight - 36,266 - 45,592 lbs
Gross power - 148 hp
Engine speed at max engine torque - 2,000 rpm
Bucket capacity - 0.39 - 1.26 yd³
Lifting capacity, along undercarriage - 11,090 lbs
...at reach / height - 20 / 5 ft
Max. digging reach - 29′ 6″ ft in
Max. digging depth - 19′ 11″ ft in
Breakout force, SAE J1179 (Normal) - 25,920 lbf
Breakout force, SAE J1179 (Boost) - 27,400 lbf
Tear out force, SAE J1179 (Normal) - 18,370 lbf
Overall width feet inches - 9′ 2″ ft in
Tear out force, SAE J1179 (Boost) - 19,420 lbf
Tail swing radius - 8′ 4″ ft in
