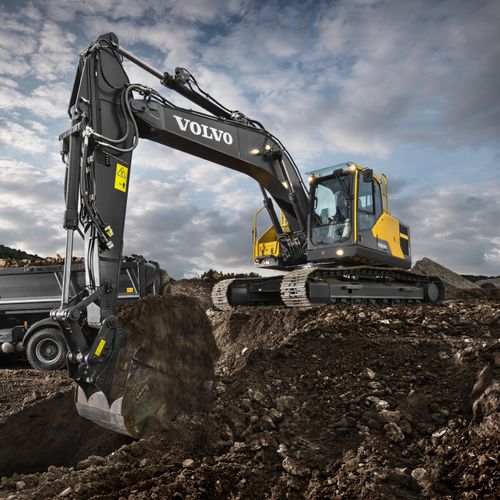

Medium excavator EC220E

crawlerfor constructiondiesel

The EC220E crawler excavator from Volvo builds on its reputation for efficiency by ensuring all components work together and complement each other. The enhancements deliver the best in class fuel efficiency while not compromising on power – reducing emissions and consumption, while increasing productivity. Operating weight - 45,350 - 55,360 lbs Gross power - 173 hp Engine speed at max engine torque - 1,800 rpm Bucket capacity - 0.63 - 1.88 yd³ Lifting capacity, along undercarriage - 16,400 lbs ...at reach / height - 20 / 5 ft Max. digging reach - 32′ 7″ ft in Max. digging depth - 22′ 1″ ft in Breakout force, SAE J1179 (Normal) - 31,700 lbf Breakout force, SAE J1179 (Boost) - 33,500 lbf Tear out force, SAE J1179 (Normal) - 23,380 lbf Overall width feet inches - 9′ 10″ ft in Tear out force, SAE J1179 (Boost) - 24,730 lbf Tail swing radius - 9′ 4″ ft in
