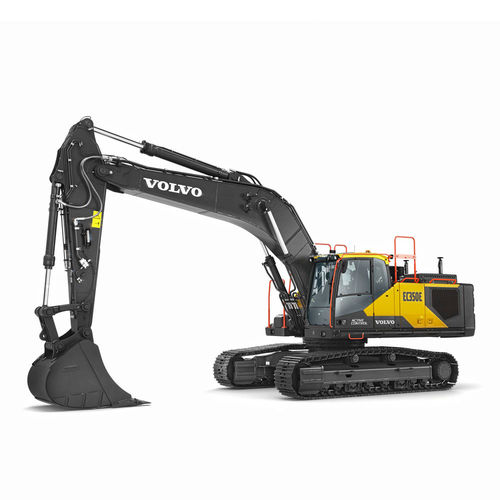

Crawler excavator EC350E HYBRID

swivelergonomicfor construction

Experience all the power and performance you would expect from a conventional EC350E while improving fuel efficiency by up to 17%. Featuring unique Volvo hybrid technology, the EC350E Hybrid charges the accumulator using the boom down motion – this stored energy is then used to drive the assist motor which powers the engine system. Operating weight - 36,260 - 38,290 kg Gross power - 220 kW ...at engine speed - 1,600 rpm Bucket capacity - 0.87 - 2.33 m³ Lifting capacity, along undercarriage - 13,470 kg ...at reach / height - 6 / 1.5 m Max. digging reach - 11,123 mm Max. digging depth - 7,490 mm Breakout force, SAE J1179 (Normal) - 177 kN Breakout force, SAE J1179 (Boost) - 192 kN Tear out force, SAE J1179 (Normal) - 201 kN Overall width feet inches - 3,190 mm Tear out force, SAE J1179 (Boost) - 219 kN Tail swing radius - 3,600 mm
