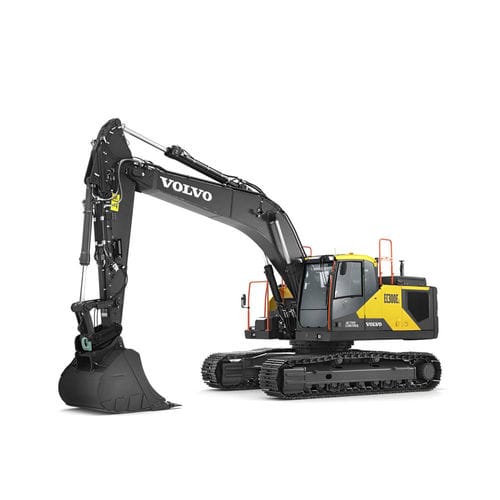

Crawler excavator EC300E HYBRID

swivelergonomicfor construction

Introducing the upgraded EC300E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor which powers the engine system. The result is up to 17% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC300E.. Operating weight - 68,608 - 72,135 lbs Gross power - 253 hp Engine speed at max engine torque - 1,600 rpm Bucket capacity - 1 - 3 yd³ Lifting capacity, along undercarriage - 25,264.9 lbs ...at reach / height - 20 / 5 ft Max. digging reach - 35′ 2″ ft in Max. digging depth - 24′ 1″ ft in Breakout force, SAE J1179 (Normal) - 37,093.5 lbf Breakout force, SAE J1179 (Boost) - 40,240.8 lbf Tear out force, SAE J1179 (Normal) - 29,899.6 lbf Overall width feet inches - 10′ 6″ ft in Tear out force, SAE J1179 (Boost) - 32,372.5 lbf Tail swing radius - 10′ 3″ ft in
