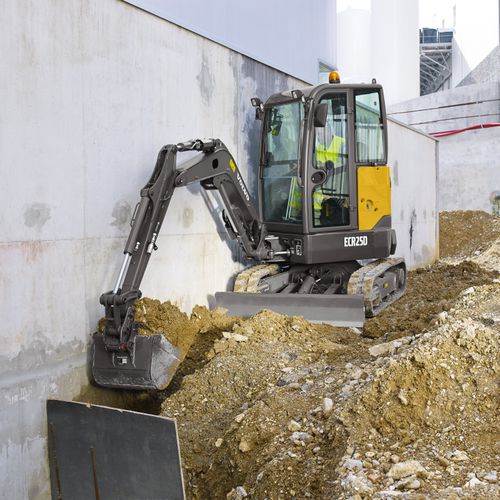

The Volvo ECR25D compact excavator has been designed with mobility and performance in mind. Featuring a range of innovations engineered for effortless transportation, you'll benefit from an ideal transport weight and an integrated bucket transport system. Achieve more with Volvo.
Engine - Volvo D1.1A
Gross power - 20.9 hp
Engine speed at max engine torque - 2,400 rpm
Operating weight - 5,490 - 5,737 lbs
Operating weight, canopy version - 5,291 - 5,538 lbs
Bucket capacity - 0.04 - 0.16 yd³
Travel speed, low / high - 1.55 / 2.8 mph
Slewing speed - 9.4 rpm
Breakout force - 4,554 lbf
Tear out force (arm breakout force) - 3,885 lbf
Overall width - 5′ 1″ ft in
Overall length - 12′ 10″ ft in
Main hydraulic pump max. flow - 17.7 gal/min
