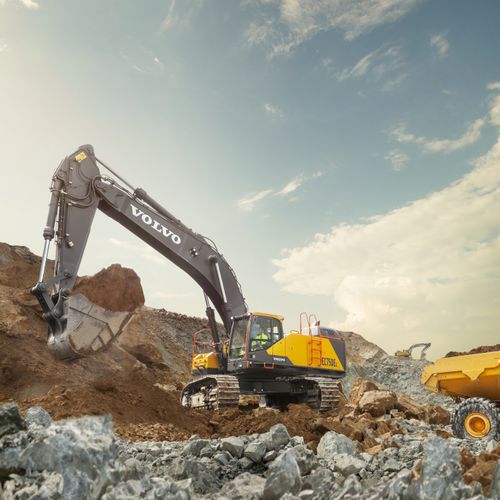

Crawler excavator EC750E

swivelfor constructiondiesel

Rely on a superior performance from the EC750E to do the bigger jobs better, stronger and faster. Equipped with a powerful Volvo D16 engine, the machine utilizes advanced technology built on decades of experience, delivering increased horsepower and fuel efficiency – that benefits your bottom line. Operating weight - 162,040 - 166,008 lbs Gross power - 516 hp Engine speed at max engine torque - 1,800 rpm Bucket capacity - 4.3 - 6.7 yd³ Lifting capacity, along undercarriage - 67,184 lbs ...at reach / height - 20 / 5 ft Max. digging reach - 37′ 7.2″ ft in Max. digging depth - 23′ 7.9″ ft in Breakout force, SAE J1179 (Normal) - 72,614 lbf Breakout force, SAE J1179 (Boost) - 76,885 lbf Tear out force, SAE J1179 (Normal) - 69,916 lbf Overall width feet inches - 14′ 0.9″ ft in Tear out force, SAE J1179 (Boost) - 73,962 lbf Tail swing radius - 13′ 7.0″ ft in
