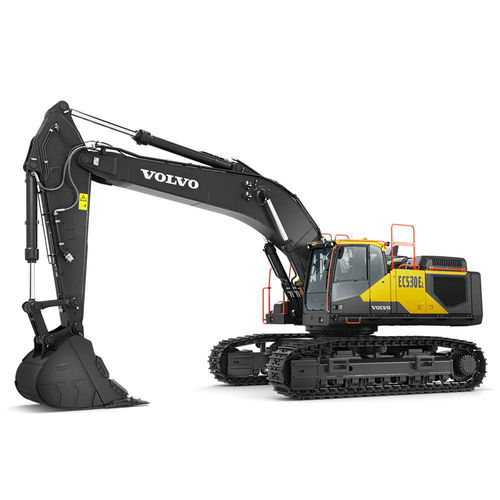

Crawler excavator EC530E

swivelergonomicfor construction

The EC530E is a true 50-tonne excavator. Providing the durability and performance you would expect from a 60-tonner, this machine sets new standards for a 50-tonne machine, delivering 25% more fuel efficiency and 20% more productivity. Featuring revolutionary new generation electro-hydraulics, outstanding reliability and the ultimate in operator comfort, the EC530E is the perfect partner for heavy-duty digging, mass excavation and large site preparation. Operating weight - 115,830 - 119,560 lbs Gross power - 456 hp Engine speed at max engine torque - 1,300 rpm Bucket capacity - 3.14 - 5 yd³ Lifting capacity, along undercarriage - 35,957 lbs ...at reach / height - 20 / 5 ft Max. digging reach - 40′ 0″ ft in Max. digging depth - 25′ 8″ ft in Breakout force, SAE J1179 (Normal) - 56,450 lbf Breakout force, SAE J1179 (Boost) - 60,500 lbf Tear out force, SAE J1179 (Normal) - 49,480 lbf Overall width feet inches - 11′ 5″ ft in Tear out force, SAE J1179 (Boost) - 52,850 lbf Tail swing radius - 12′ 9″ ft in
