Medium excavator ECR145E

crawlercompactergonomic

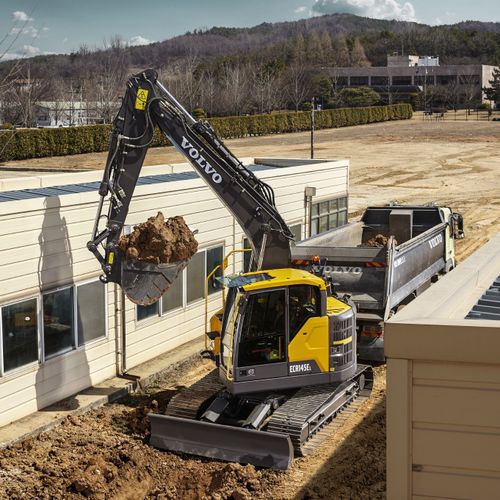

The optimized compact design of the ECR145E crawler excavator offers a short swing radius for operating in confined spaces without compromising on performance. The machine’s Stage V engine and enhanced hydraulics system results in smoother operation and increased productivity. Operating weight - 31,770 - 36,790 lbs Gross power - 121 hp Engine speed at max engine torque - 2,000 rpm Bucket capacity - 0.33 - 1.07 yd³ Lifting capacity, along undercarriage - 7,960 lbs ...at reach / height - 20 / 5 ft Max. digging reach - 27′ 5″ ft in Max. digging depth - 18′ 2″ ft in Breakout force, SAE J1179 (Normal) - 18,100 lbf Breakout force, SAE J1179 (Boost) - 19,200 lbf Tear out force, SAE J1179 (Normal) - 13,950 lbf Overall width feet inches - 8′ 10″ ft in Tear out force, SAE J1179 (Boost) - 14,800 lbf Tail swing radius - 4′ 11″ ft in
