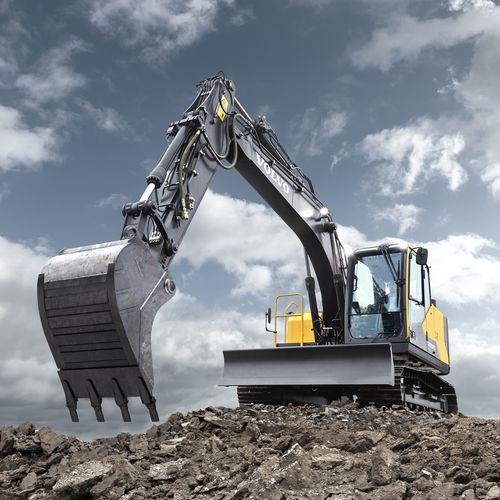

The Volvo EC140E digger has been designed to deliver every function with superior efficiency.
This machine not only produces maximum uptime. It also incorporates the latest fuel efficiency technology, to reduce emissions and consumption, while increasing productivity.
Operating weight - 28,880 - 35,620 lbs
Gross power - 121 hp
Engine speed at max engine torque - 2,000 rpm
Bucket capacity - 0.33 - 1.01 yd³
Lifting capacity, along undercarriage - 8,200 lbs
...at reach / height - 20 / 5 ft
Max. digging reach - 27′ 5″ ft in
Max. digging depth - 18′ 3″ ft in
Breakout force, SAE J1179 (Normal) - 20,480 lbf
Breakout force, SAE J1179 (Boost) - 21,720 lbf
Tear out force, SAE J1179 (Normal) - 14,280 lbf
Overall width feet inches - 8′ 6″ ft in
Tear out force, SAE J1179 (Boost) - 15,150 lbf
Tail swing radius - 7′ 3″ ft in
