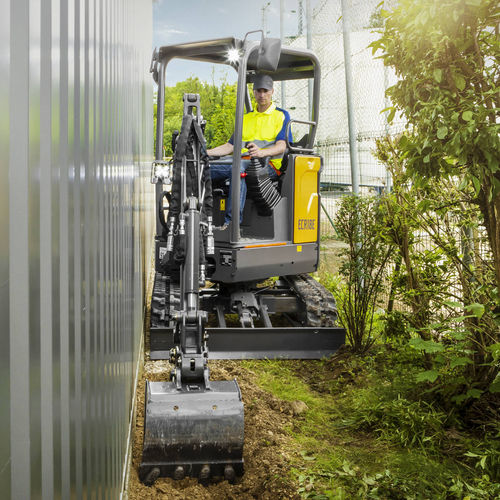

The ECR18E short-swing compact excavator is a 1.8 ton class machine that can squeeze into the tightest of spaces, and thanks to its ultra-short tail design – the shortest radius in the Volvo range – it can work close to obstacles and fit in spaces as narrow as 39 inches.
Engine - Volvo D0.9A
Gross power - 16.1 hp
Net power - 15.8 hp
Engine speed at max engine torque - 2,300 rpm
Operating weight - 3,748 lbs
Operating weight, canopy version - 3,748 lbs
Bucket capacity - 0.02 - 0.07 yd³
Travel speed, low / high - 1.12 / 2.17 mph
Slewing speed - 9.5 rpm
Breakout force - 2,900 lbf
Tear out force (arm breakout force) - 1,787.2 lbf
Overall width - 3′ 3.2″ ft in
Overall length - 11′ 3.1″ ft in
Main hydraulic pump max. flow - 9 gal/min
