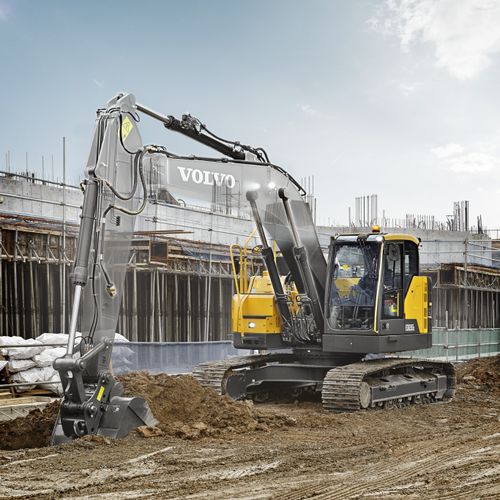

Medium excavator ECR235E

crawlercompactergonomic

The optimized compact design of the ECR235E crawler excavator offers a short swing radius for operating in confined spaces without compromising on performance. The machine’s Stage V engine and hydraulics system results in smoother operation and increased productivity. Operating weight - 52,250 - 61,440 lbs Gross power - 173 hp Engine speed at max engine torque - 1,800 rpm Bucket capacity - 0.47 - 1.88 yd³ Lifting capacity, along undercarriage - 16,770 lbs ...at reach / height - 20 / 5 ft Max. digging reach - 32′ 5″ ft in Max. digging depth - 22′ 2″ ft in Breakout force, SAE J1179 (Normal) - 28,100 lbf Breakout force, SAE J1179 (Boost) - 29,710 lbf Tear out force, SAE J1179 (Normal) - 22,780 lbf Overall width feet inches - 10′ 2″ ft in Tear out force, SAE J1179 (Boost) - 24,080 lbf Tail swing radius - 5′ 11″ ft in
