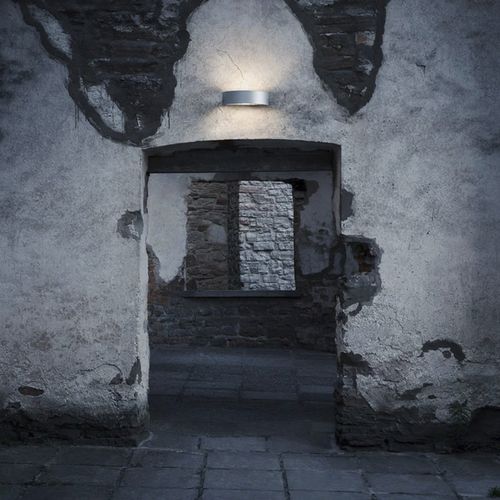

Contemporary wall light ALLRIGHT

indoorgalvanised steelacrylic

Finish
Shade in galvanized metal. Diffuser in prismatic acrylic.

LED info
System power 10W. Luminaire luminous flux 576 LM (268 mm), 585 LM (365 mm). Correlated colour temperature (CCT) 3000 K. SDCM 3. CRI >90.

Installation
Surface-mounted wall installation.

Connection
Snap-in terminal block 3x4 mm2. 7417-terminal block 5x4 mm2.

Classification
IK06, IP23.

Design
Designed by Per Sundstedt.

Standard colours
Other colours available on request.

Product specification

• 7426-1-83 — 268 mm, 576 LM / 10W, 1.6 kg
• 7426-3-83 — 365 mm, 585 LM / 10W, 1.9 kg
• 7427-3-83 — 365 mm with socket, 585 LM / 10W, 1.9 kg

Accessories

• Topcover for downlight only 268 mm — 97413-1-83
• Topcover for downlight only 365 mm — 97413-3-83

Technical specifications

• Finish: galvanized metal shade; diffuser: prismatic acrylic
• System power: 10 W
• Luminous flux: 576 LM (268 mm), 585 LM (365 mm)
• Correlated colour temperature (CCT): 3000 K
• SDCM: 3
• CRI: >90
• Installation: surface-mounted wall
• Connection: snap-in terminal block 3x4 mm²; 7417-terminal block 5x4 mm²
• Classification: IK06, IP23
• Design: Per Sundstedt
• Standard colours: other colours available on request
• Available variants and article numbers: 7426-1-83 (268 mm, 576 LM/10W, 1.6 kg), 7426-3-83 (365 mm, 585 LM/10W, 1.9 kg), 7427-3-83 (365 mm with socket, 585 LM/10W, 1.9 kg)
• Accessories: topcovers for downlight (268 mm: 97413-1-83; 365 mm: 97413-3-83)
