Urban lamp post CITY GLOBE
contemporarypolycarbonatesteel

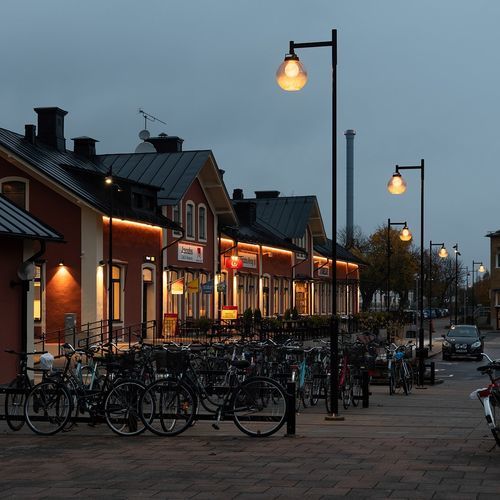

Urban lamp post - CITY GLOBE - ZERO - contemporary / polycarbonate / steel
Urban lamp post - CITY GLOBE - ZERO - contemporary / polycarbonate / steel
Urban lamp post - CITY GLOBE - ZERO - contemporary / polycarbonate / steel - image - 2
Urban lamp post - CITY GLOBE - ZERO - contemporary / polycarbonate / steel - image - 3
Urban lamp post - CITY GLOBE - ZERO - contemporary / polycarbonate / steel - image - 4
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Type
urban
Style
contemporary
Material
steel, glass, polycarbonate
Light source
LED
Number of lights
single
Shape
geometric
Support type
straight
Protection class
IP65
Color
black, red
Other characteristics
DALI, dimmable
Color temperature

3,000 K

Color rendering index (CRI)

80 unit

Luminous flux

1,900 lm

Power

23 W

Description

Finish
Painted aluminium and steel. Outer shade in grey-toned polycarbonate. Inner shade in crackled glass. Pole arm included.

LED information
System power: 23W. Luminaire luminous flux: 1900 LM. Correlated colour temperature (CCT): 3000K. SDCM: 3. CRI: >80. L80: 80,000 h.

Installation
Designed for pole-top installation on Ø60 mm columns. Pole arm included for standard mounting.

Connection
Terminal block 4 x 10 mm2 for straightforward on-site wiring.

Classification
IK10 impact resistance, IP65 ingress protection for outdoor environments.

Design
Designed by Thomas Bernstrand, 2019 — aesthetic suited to urban and architectural contexts.

Standard colours
Standard inner shade options: Grey, Cognac, Red. Other colours available on request.

Product specification (variants)
23W/1900LM | 3000K | >80 CRI | Grey | On/Off | 12001306-30
23W/1900LM | 3000K | >80 CRI | Grey | DALI | 12001306D30
23W/1900LM | 3000K | >80 CRI | Cognac | On/Off | 12002306-30
23W/1900LM | 3000K | >80 CRI | Cognac | DALI | 12002306D30
23W/1900LM | 3000K | >80 CRI | Red | On/Off | 12003306-30
23W/1900LM | 3000K | >80 CRI | Red | DALI | 12003306D30
D = Dimmable with DALI or SwitchDim. Prepared for Zhaga.
Zhaga variants:
23W/1900LM | 3000K | >80 CRI | Grey | Zhaga | 12001306Z30
23W/1900LM | 3000K | >80 CRI | Cognac | Zhaga | 12002306Z30
23W/1900LM | 3000K | >80 CRI | Red | Zhaga | 12003306Z30

Technical specifications
  • System power: 23W
  • Luminaire luminous flux: 1900 LM
  • Correlated colour temperature (CCT): 3000K
  • SDCM: 3
  • CRI: >80
  • L80 rating: 80,000 h
  • Finish: Painted aluminium and steel; outer shade in grey-toned polycarbonate; inner shade in crackled glass
  • Pole arm: included
  • Installation: On pole top Ø60 mm
  • Connection: Terminal block 4 x 10 mm2
  • Classification: IK10, IP65
  • Controls: On/Off, DALI, Zhaga; dimmable with DALI or SwitchDim
  • Design: Thomas Bernstrand, 2019
  • Standard inner shade colours: Grey, Cognac, Red
  • Prepared for Zhaga (Zhaga variants available)
  • Article numbers provided per variant (see product specification)
