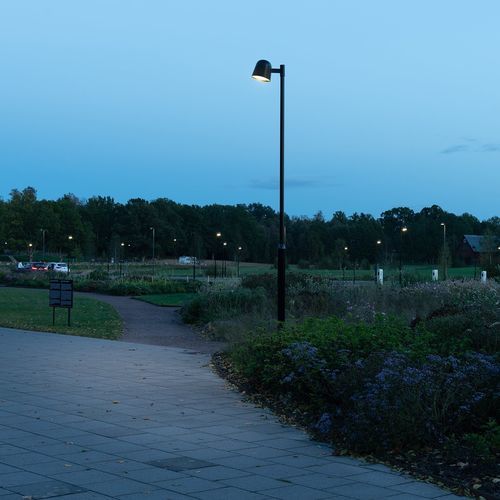

Urban lamp post CONVEX

gardencontemporarymetal

Overview
Convex was launched two years ago as a wall fixture and is now available as a pole-top luminaire and bollard. Its gently curved top delivers a clear architectural expression while durable construction and LED efficiency support long service life. Galvanized versions are recommended for installations near coastlines.

Finish
Painted or galvanized metal. Tempered glass.

LED info

• System power: 32W
• Luminaire luminous flux: 1920 lm (symmetric) or 1940 lm (asymmetric)
• CCT: 3000K
• SDCM: 3
• CRI: >80
• L70: 80,000 h

Installation
On pole top D60 mm.

Connection
Cable with quick connection.

Classification
IK08, IP44.

Design
Jens Fager 2016.

Standard colours
Other colours on request.

Product specification

• LED 1940LM/32W Asymm | Black | 8294-1-06
• LED 1940LM/32W Asymm | Black | 8294-1-06HFF
• LED 1940LM/32W Asymm | Black | 8294-1-06N
• LED 1940LM/32W Asymm | Galvanized | 8294-1-83
• LED 1940LM/32W Asymm | Galvanized | 8294-1-83HFF
• LED 1940LM/32W Asymm | Galvanized | 8294-1-83N
• LED 1920LM/32W Symm | Black | 8295-1-06
• LED 1920LM/32W Symm | Black | 8295-1-06HFF
• LED 1920LM/32W Symm | Black | 8295-1-06N
• LED 1920LM/32W Symm | Galvanized | 8295-1-83
• LED 1920LM/32W Symm | Galvanized | 8295-1-83HFF
• LED 1920LM/32W Symm | Galvanized | 8295-1-83N

HFF = DALI (dimmable DALI)
N = Night-time dimming

Technical specifications

• System power: 32W
• Luminaire luminous flux: 1920 lm (symmetric) or 1940 lm (asymmetric)
• Beam options: symmetric and asymmetric
• Correlated Colour Temperature (CCT): 3000K
• SDCM: 3
• CRI: >80
• L70: 80,000 h
• Ingress Protection: IP44
• Impact Protection: IK08
• Mounting: On pole top D60 mm
• Connection: Cable with quick connection
• Materials/Finish: Painted or galvanized metal; tempered glass
• Designer: Jens Fager (2016)
• Recommended: Use galvanized model near coastline
