Urban lamp post BRASS
contemporaryacrylicbrass

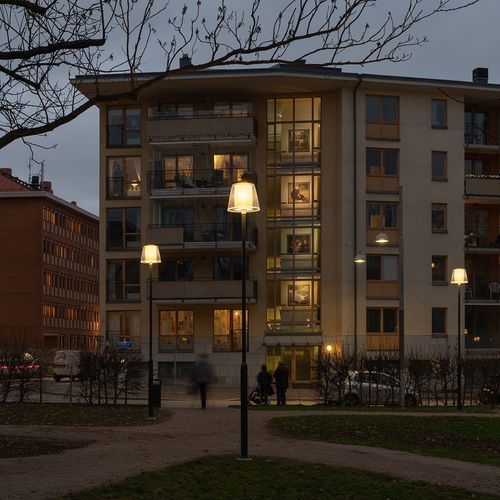

Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass - image - 2
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass - image - 3
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass - image - 4
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass - image - 5
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass - image - 6
Urban lamp post - BRASS - ZERO - contemporary / acrylic / brass - image - 7
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Type
urban
Style
contemporary
Material
brass, acrylic, opal
Light source
LED
Number of lights
single
Shape
geometric
Support type
straight
Protection class
IP54
Color
black, brown
Other characteristics
IK09
Height

456 mm
(17.95 in)

Length

520 mm
(20 in)

Width

520 mm
(20 in)

Color temperature

3,000 K

Color rendering index (CRI)

80 unit

Luminous flux

2,240 lm

Power

28 W

Description

Finish
Painted metal body. Outer shade in transparent acrylic. Inner shade in brass net with opal acrylic diffuser.

LED info
Includes Philips True Force LED light source. System power: 28W. Luminaire luminous flux: 2240 lm. Correlated colour temperature (CCT): 3000K. SDCM: 3. CRI: >80.

Installation
Mounts on pole top Ø60 mm.

Connection
Cable and quick-plug.

Classification
IK09, IP54.

Standard colours
Standard colour as shown. Other colours available on request.

Product specification
W | ART.
LED 2240LM/28W/E27 | 3431-1-80

Accessories
Black pole 3-4 mm | 93230-1-06

Technical specifications / Caractéristiques
  • Finish: Painted metal body; outer shade in transparent acrylic; inner shade in brass net with opal acrylic diffuser
  • LED light source: Philips True Force
  • System power: 28W
  • Luminaire luminous flux: 2240 lm
  • LED data: 2240LM / 28W / E27
  • Correlated colour temperature (CCT): 3000K
  • SDCM: 3
  • CRI: >80
  • Installation: On pole top Ø60 mm
  • Connection: Cable and quick-plug
  • Classification: IK09, IP54
  • Product code (ART.): 3431-1-80
  • Accessory: Black pole 3-4 mm (ART. 93230-1-06)
  • Standard colours: Other colours on request
