Urban bollard light PLANT

for public spacesstainless steelaluminum

Product overview

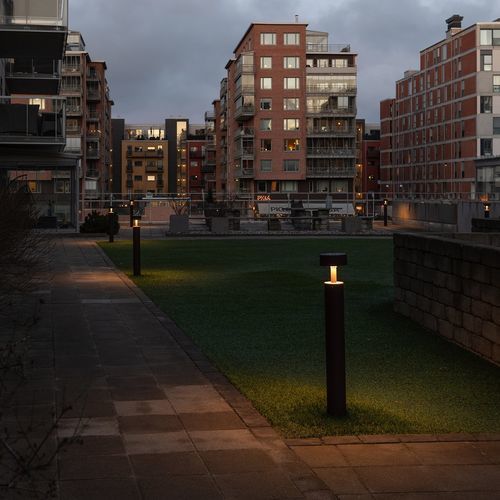

PLANT is an outdoor bollard designed by Thomas Bernstrand. Inspired by outdoor plants, its two distinct shade shapes create a playful but discreet presence in urban landscapes. PLANT can be used as single units, in groups or combined with other poles and wall fixtures from the Zero range. Constructed from durable metal with finishes in black or corten paint.

Finish
Bollard with shade in aluminum and tube in stainless steel.

LED info

• System power: 12W
• Luminaire Luminous Flux: 1080 LM
• CCT: 3000K
• SDCM: 3
• CRI: >80
• L80: >100.000 h

Installation
For buried foundation D 108 mm or with installation plate for above-ground mounting.

Connection
Fuse-box/terminal block 5x25mm2.

Classification
IK10, IP54.

Design
Thomas Bernstrand 2021.

Standard colours
Black or Corten paint. Other colours on request.

Product specification
POWER | CRI | KELVIN | MODEL | COLOUR | INSTALLATION | ART.
LED/12W/1080LM | >80 | 3000 | Large Cylinder | Black | Buried foundation | 12035106-30
LED/12W/1080LM | >80 | 3000 | Large Cylinder | Corten paint | Buried foundation | 12035147-30
LED/12W/1080LM | >80 | 3000 | Round | Black | Buried foundation | 12036106-30
LED/12W/1080LM | >80 | 3000 | Round | Corten paint | Buried foundation | 12036147-30
LED/12W/1080LM | >80 | 3000 | Large Cylinder | Black | Above ground | 12045106-30
LED/12W/1080LM | >80 | 3000 | Large Cylinder | Corten paint | Above ground | 12045147-30
LED/12W/1080LM | >80 | 3000 | Round | Black | Above ground | 12046106-30
LED/12W/1080LM | >80 | 3000 | Round | Corten paint | Above ground | 12046147-30

Technical specifications

• Designer: Thomas Bernstrand (2021)
• Product type: Outdoor bollard
• Materials: Shade in aluminum, tube in stainless steel
• System power: 12 W
• Luminous flux: 1080 LM
• Correlated Colour Temperature (CCT): 3000 K
• SDCM: 3
• CRI: >80
• Lifespan L80: >100,000 h
• Connection: Fuse-box / terminal block 5x25 mm2
• Installation options: Buried foundation (D 108 mm) or above-ground with installation plate
• Ingress / impact protection: IP54, IK10
• Standard finishes: Black, Corten paint (other colours on request)
• Available models and article numbers: see product specification table above
