Oval ceiling light CEILING

PMMAaluminumLED

Overview

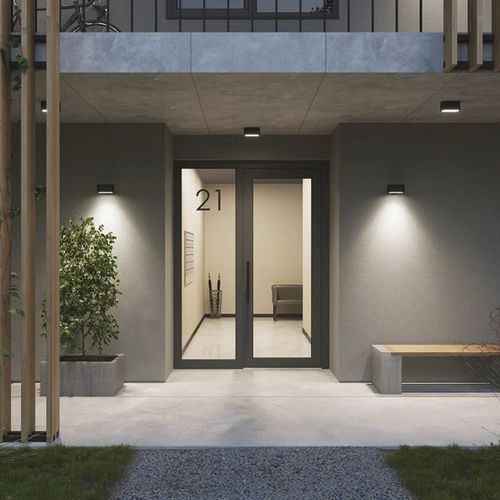

An easy-to-place, sculptural ceiling-mounted luminaire designed to illuminate thoroughfares, pathways, facades and covered areas. Compact scale and a restrained appearance create clear orientation and define spaces. Suitable for architectural projects requiring discreet, durable outdoor lighting. IP65, IK10. Built-in LED module.

Finish
Painted cast aluminum housing with a micro-prismatic diffuser.

LED info

• System power: 14W.
• Luminaire luminous flux: 865 lm.
• Correlated Colour Temperature (CCT): 3000K.
• SDCM: 3.
• Colour Rendering Index (CRI): >90 (LED info); >80 (product table).
• Lumen maintenance: L80 B50 @ 80,000 h.

Installation
Surface-mounted ceiling installation suitable for canopies, corridors and sheltered facades.

Connection

• On/off model: Possible with double conduit entry. Terminal block 3x2.5 mm².
• Dimmable (DALI) model: Double conduit entry not possible. Terminal block 5x2.5 mm².

Classification
IK10, IP65.

Design
Kauppi & Kauppi, 2019.

Standard colours
Black. Other colours available on request for project coordination.

Product specification
POWER | LUMINAIRE FLUX | KELVIN | CRI | Color | Model | ART.
14W | 865LM | 3000K | >80 | Black | Ceiling | 13000106-30
14W | 865LM | 3000K | >80 | Black | Ceiling | 13000106D30
D = Dimmable DALI | | | | | |

Technical specifications

• System power: 14W.
• Luminaire luminous flux: 865 lm.
• Correlated Colour Temperature (CCT): 3000K.
• SDCM: 3.
• Colour Rendering Index (CRI): >90 (LED info) and >80 (product table).
• Lumen maintenance: L80 B50, 80,000 h.
• Finish: Painted cast aluminum; diffuser in micro-prismatic material.
• Installation: Surface-mounted ceiling installation.
• Connection: On/off model — double conduit entry possible, terminal block 3x2.5 mm²; Dimmable model — double conduit entry not possible, terminal block 5x2.5 mm².
• Classification: IK10, IP65.
• Design: Kauppi & Kauppi, 2019.
• Standard colour: Black (other colours on request).
• Commercial model name: Ceiling.
• Article numbers: 13000106-30, 13000106D30 (D = Dimmable DALI).
