Urban lamp post LYX
gardencontemporarypolycarbonate

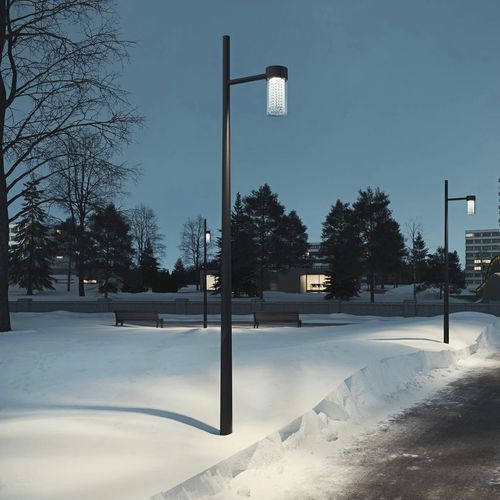

Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate
Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate
Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate - image - 2
Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate - image - 3
Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate - image - 4
Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate - image - 5
Urban lamp post - LYX - ZERO - garden / contemporary / polycarbonate - image - 6
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Type
urban, garden
Style
contemporary
Material
metal, glass, polycarbonate
Light source
LED
Number of lights
single, triple, double
Shape
geometric
Support type
straight
Protection class
IP65
Color
black
Other characteristics
IK10
Height

831 mm
(32.72 in)

Length

722 mm
(28 in)

Width

200 mm
(8 in)

Color temperature

3,000 K

Color rendering index (CRI)

80 unit

Luminous flux

2,190 lm

Power

19 W

Description

Finish
Painted aluminium and zinced metal. Outer shade in polycarbonate with integrated glass prisms. Pole arm included.

LED info
System power 19W. Luminaire luminous flux: 1990–2240 lm depending on optic. CCT 3000K (2700K, 3500K or 4000K on request). SDCM 3. CRI >80. Lumen maintenance L70 at 60,000 h.

Installation
Designed for pole-top mounting on Ø60 mm spigot. Double and triple mounting versions available on request. We recommend sourcing poles locally due to national standards; poles supplied by manufacturer conform to Swedish buried-foundation standards.

Connection
Terminal block 5x10 mm2.

Classification
IK08, IP65.

Design
Jan Forsmark, 2024.

Standard colours
Black. Other colours available on request.

Product specification - Symmetrical
POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | CONTROL | ART.
LED 19W | 2190 lm | 3000K | >80 | Black | On/Off | 12330106-30
LED 19W | 2190 lm | 3000K | >80 | Black | DALI | 12330106D30
LED 19W | 2190 lm | 3000K | >80 | Black | Zhaga | 12330106Z30

Product specification - Asymmetrical road
POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | CONTROL | ART.
LED 19W | 1990 lm | 3000K | >80 | Black | On/Off | 12331106-30
LED 19W | 1990 lm | 3000K | >80 | Black | DALI | 12331106D30
LED 19W | 1990 lm | 3000K | >80 | Black | Zhaga | 12331106Z30

Product specification - Asymmetrical road wide
POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | CONTROL | ART.
LED 19W | 2209 lm | 3000K | >80 | Black | On/Off | 12332106-30
LED 19W | 2209 lm | 3000K | >80 | Black | DALI | 12332106D30
LED 19W | 2209 lm | 3000K | >80 | Black | Zhaga | 12332106Z30

Product specification - Asymmetrical forward
POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | CONTROL | ART.
LED 19W | 2240 lm | 3000K | >80 | Black | On/Off | 12333106-30
LED 19W | 2240 lm | 3000K | >80 | Black | DALI | 12333106D30
LED 19W | 2240 lm | 3000K | >80 | Black | Zhaga | 12333106Z30

Technical specifications
  • Product name: Lyx
  • Brand: Zero
  • Materials: Painted aluminium and zinced metal; outer shade in polycarbonate with integrated glass prisms
  • Pole arm: Included
  • System power: 19W (LED)
  • Luminaire luminous flux: variants 1990 lm, 2190 lm, 2209 lm, 2240 lm
  • Correlated Color Temperature (CCT): 3000K standard (2700K, 3500K or 4000K on request)
  • SDCM: 3
  • CRI: >80
  • Lumen maintenance: L70 60,000 h
  • Installation: On pole top Ø60 mm; double or triple mounting versions available on request; poles available according to Swedish buried-foundation standards
  • Connection: Terminal block 5 x 10 mm2
  • Protection / classification: IK08, IP65
  • Designer: Jan Forsmark, 2024
  • Finish / standard colour: Black (other colours on request)
  • Control options: On/Off, DALI, Zhaga
  • Article numbers / variants: Symmetrical 12330106-30 / 12330106D30 / 12330106Z30; Asymmetrical road 12331106-30 / 12331106D30 / 12331106Z30; Asymmetrical road wide 12332106-30 / 12332106D30 / 12332106Z30; Asymmetrical forward 12333106-30 / 12333106D30 / 12333106Z30
