Surface-mounted spotlight CEILING

LEDovalsculptural

Product overview

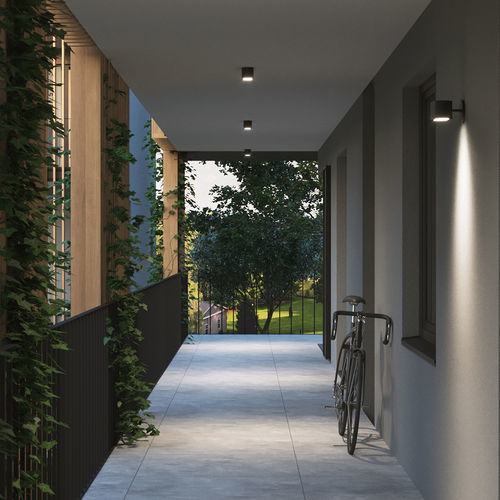

An easy-to-place, sculptural family of fixtures designed to illuminate thoroughfares, pathways, facades and covered areas. Neat scale and a restrained presentation inspired by traditional signposts: Pathfinder creates direction and defines place. Inbuilt LED module. Rated IP65.

Finish
Painted cast aluminium. Diffuser: microprism.

LED info
System power: 14W. Luminaire luminous flux: 865 lm. CCT: 3000K. SDCM: 3. CRI: >90 (note: table lists >80). Lumen maintenance: L80 B50 at 80,000 h.

Installation
Surface-mounted ceiling installation.

Connection
On/off model: Possible with double conduit entry. Terminal block 3x2,5mm2.

• Dimmable model: Double conduit entry not possible. Terminal block 5x2,5mm2.

Classification
IK10, IP65.

Design
Kauppi & Kauppi, 2019.

Standard colours
Black. Other colours available on request.

Product specification

• POWER | LUMINAIRE FLUX | KELVIN | CRI | Color | Model | ART.
• 14W | 865LM | 3000K | >80 | Black | Ceiling | 13000106-30
• 14W | 865LM | 3000K | >80 | Black | Ceiling | 13000106D30
• D = Dimmable DALI

Technical specifications

• System power: 14W
• Luminaire luminous flux: 865 lm
• Correlated Colour Temperature (CCT): 3000K
• SDCM: 3
• Colour Rendering Index (CRI): listed as >90 in LED info; table lists >80
• Lumen maintenance: L80 B50 at 80,000 hours
• Finish: Painted cast aluminium
• Diffuser: Microprism
• Installation: Surface-mounted ceiling
• Connection: On/off model — double conduit entry possible; terminal block 3x2,5mm2. Dimmable model — double conduit entry not possible; terminal block 5x2,5mm2
• Classification: IK10, IP65
• Design: Kauppi & Kauppi, 2019
• Standard colour: Black (other colours on request)
• Available model designation: "Ceiling" with article numbers 13000106-30 and 13000106D30
• Includes inbuilt LED module
