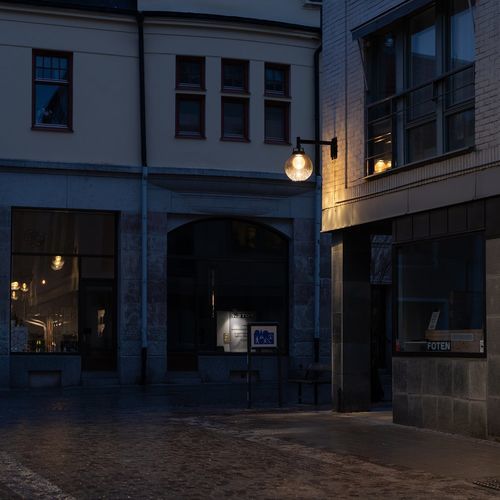

Contemporary wall light CITY GLOBE

outdoorglassaluminum

Finish
Painted aluminium and metal. Outer shade in grey-toned polycarbonate. Inner shade in crackled glass.

LED info
System power 23W. Luminaire luminous flux 1900 lm. CCT 3000K. SDCM 3. CRI >80. L80 80,000h.

Installation
Surface mounted wall installation.

Connection
Terminal block 5x4mm2.

Classification
IK 10, IP 65.

Design
Thomas Bernstrand 2019.

Standard colours

• Cognac
• Grey
• Red
• 9005

Other colours on request.

Product specification
POWER | KELVIN | CRI | INTERNAL SHADE | | ART.
LED | | | | |
23W/1900LM | 3000K | >80 | Grey | On/Off | 12006306-30
23W/1900LM | 3000K | >80 | Grey | Dali | 12006306D30
23W/1900LM | 3000K | >80 | Cognac | On/Off | 12007306-30
23W/1900LM | 3000K | >80 | Cognac | Dali | 12007306D30
23W/1900LM | 3000K | >80 | Red | On/Off | 12008306-30
23W/1900LM | 3000K | >80 | Red | Dali | 12008306D30
D = Dimmable DALI or SwitchDim. | | | | |
Prepared for Zhaga | | | | |
23W/1900LM | 3000K | >80 | Grey | Zhaga | 12006306Z30
23W/1900LM | 3000K | >80 | Cognac | Zhaga | 12007306Z30
23W/1900LM | 3000K | >80 | Red | Zhaga | 12008306Z30

Downloads / available files
Product sheet (PDF), installation (PDF), lightdata file (ldt), BIM (Revit / Archicad), SketchUp, 3D DWG.

Technical specifications

• System power: 23W
• Luminaire luminous flux: 1900 lm
• Correlated Colour Temperature (CCT): 3000K
• SDCM: 3
• CRI: >80
• L80: 80,000 h
• Internal shade: Grey, Cognac, Red (variants)
• Finish materials: Painted aluminium and metal; outer shade in grey-toned polycarbonate; inner shade in crackled glass
• Installation: Surface mounted wall
• Connection: Terminal block 5x4mm2
• Classification: IK 10, IP 65
• Dimming options: On/Off, DALI, Dimmable (D = DALI or SwitchDim)
• Prepared for Zhaga (select variants)
• Design: Thomas Bernstrand, 2019
• Article codes / variants: see product specification table (multiple ART. numbers for colour and control variants)
