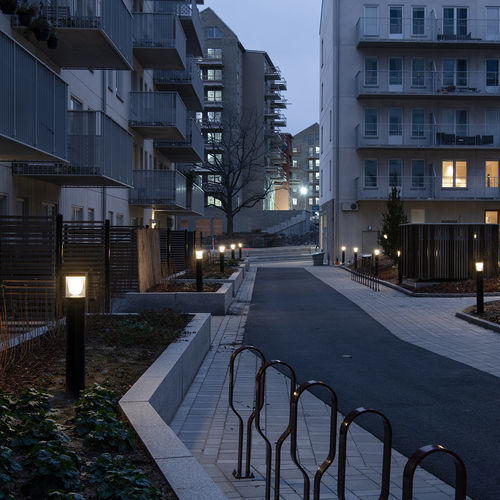

Urban bollard light CONVEX

for public spacescontemporaryacrylic

Overview
Convex is a dual‑purpose outdoor luminaire designed to function as either a pole fixture or a bollard. It features a slightly curved top that defines its aesthetic while a robust construction ensures reliable outdoor performance. Energy efficient LED module. Rated IK10 for impact resistance.

Finish
Painted aluminium and metal body. Inner diffuser in opal acrylic; outer in transparent acrylic.

LED info
System power: 6W. Luminaire luminous flux: 370 lm. CCT: 3000K. SDCM: 3. CRI >90. Lifetime: L80 B10 50,000 h.

Installation
For standard foundations 108 mm or for above‑ground mounting with accessory 93415-1-xx.

Connection
Terminal block 5x10 mm2.

Classification
IK10, IP44.

Design
Jens Fager, 2016.

Standard colours
Black; Galvanized. Other colours available on request.

Product specification (table)
W | D/H/mm | COLOUR | ART.
LED 370LM/6W | 133 / 1039 | Black | 3415-1-06
LED 370LM/6W | 133 / 1039 | Galvanized | 3415-1-83

Accessories (table)
Ground base for above‑ground installation | 300 x 300 | Black | 93415-1-06
Ground base for above‑ground installation | 300 x 300 | Galvanized | 93415-1-83

Technical specifications

• Finish: Painted aluminium and metal; inner diffuser: opal acrylic; outer: transparent acrylic
• System power: 6W
• Luminaire luminous flux: 370 lm
• CCT: 3000K
• SDCM: 3
• CRI: >90
• Lifetime: L80 B10 50,000 h
• Dimensions (D/H/mm): 133 / 1039
• Classification: IK10, IP44
• Connection: Terminal block 5x10 mm2
• Article numbers: 3415-1-06 (Black), 3415-1-83 (Galvanized)
• Accessories: Ground base 300 x 300 (93415-1-06 Black, 93415-1-83 Galvanized)
• Designer: Jens Fager, 2016
