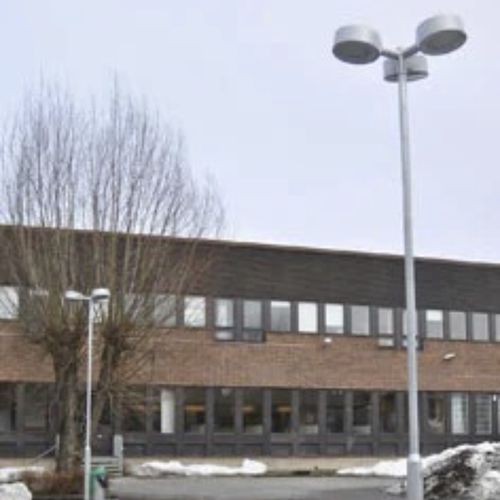

Urban lamp post TREPUCKcontemporarypainted steelglass
Add to favorites
Compare this product
Characteristics
- Type
- urban
- Style
- contemporary
- Material
- painted steel, glass
- Light source
- LED
- Number of lights
- triple
- Shape
- geometric
- Support type
- straight
- Protection class
- IP44
- Color
- silver-colored
- Other characteristics
- DALI
- Height
135 mm
(5.31 in)- Length
525 mm
(21 in)- Width
360 mm
(14 in)- Color temperature
3,000 K
- Color rendering index (CRI)
80 unit
- Power
28 W
Description
Overview
Trepuck is a pole-mounted LED street luminaire with painted steel housing and a tempered glass diffuser, designed for urban and road lighting applications.
LED information
Installation
Mounting on pole with Ø60 mm spigot.
Connection
Terminal block 4x10 mm².
Classification
IK07, IP44.
Design
Designed by R. Aosta.
Standard colours
Standard painted finish; other colours available on request.
Product specification
Accessories
Grey painted pole 3–4000 mm — ART 93230-1-10.
Technical specifications
Trepuck is a pole-mounted LED street luminaire with painted steel housing and a tempered glass diffuser, designed for urban and road lighting applications.
LED information
- System power: 28W (per fixture)
- Luminaire luminous flux: 2298 lm (symmetric) or 2140 lm (asymmetric)
- Correlated colour temperature (CCT): 3000K
- Colour consistency: SDCM 3
- CRI > 80
- Lifetime: L90 B10 100,000 h
- Dimming option: HFF = DALI (on request)
Installation
Mounting on pole with Ø60 mm spigot.
Connection
Terminal block 4x10 mm².
Classification
IK07, IP44.
Design
Designed by R. Aosta.
Standard colours
Standard painted finish; other colours available on request.
Product specification
- 3xLED 2298LM / 28W | Symmetrical | 3279-3-10
- 3xLED 2298LM / 28W | Symmetrical | 3279-3-10HFF
- 3xLED 2140LM / 28W | Asymmetrical | 3380-3-10
- 3xLED 2140LM / 28W | Asymmetrical | 3380-3-10HFF
Accessories
Grey painted pole 3–4000 mm — ART 93230-1-10.
Technical specifications
- Product name: Trepuck
- Finish: Painted steel
- Diffuser: Tempered glass
- Installation: On pole Ø60 mm
- Connection: Terminal block 4x10 mm²
- Protection: IK07, IP44
