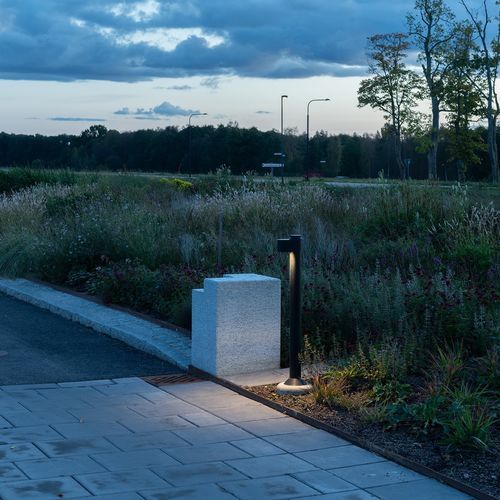

Urban bollard light PATHFINDER BOLLARD

for public spacescontemporarycast aluminum

Overview
The Pathfinder bollard family is an easy-to-place, sculptural range designed to illuminate thoroughfares, pathways, façades and sheltered areas. Its neat scale and restrained expression are inspired by traditional signposts. Bollards can be fitted with one or more luminaire heads in various combinations and orientations. IP 65.

Finish
Painted cast aluminum. Diffuser: microprism. Symmetrical or asymmetrical optical options. Custom pole heights available on request.

LED info
System power: 10W. Luminaire luminous flux: 430 lm (symmetric), 480 lm (asymmetric). CCT: 3000K. SDCM: 3. CRI >90. Lumen maintenance: L80 B10 @ 50,000 h.

Installation
Mounting options: buried foundation Ø76 mm or surface mounting with ground plate. Minimum mounting height with one luminaire head: 600 mm above ground. Expandable with up to 3 extra luminaire heads. Optional extra head with electrical socket (Type F, max 2000W) — see product sheet for details.

Connection
Terminal block 2x4 x10 mm².

Classification
IK10, IP65.

Design
Kauppi & Kauppi 2019.

Standard colours
Black. Other colours available on request.

Product specification (table)

• Bollard for ground installation (symmetrical) — 10W | 430 lm | 3000K | CRI >90 | Black | Model: Bollard single | Article: 13005106-30
• Bollard for ground installation (asymmetrical) — 10W | 480 lm | 3000K | CRI >90 | Black | Model: Bollard single | Article: 13006106-30
• Bollard for surface mounting (symmetrical) — 10W | 430 lm | 3000K | CRI >90 | Black | Model: Bollard single | Article: 13007106-30
• Bollard for surface mounting (asymmetrical) — 10W | 480 lm | 3000K | CRI >90 | Black | Model: Bollard single | Article: 13008106-30
• Extra luminaire head (symmetrical) — 10W | 430 lm | 3000K | CRI >90 | Black | Model: Luminaire head sym | Article: 13009106-30
• Extra luminaire head (asymmetrical) — 10W | 480 lm | 3000K | CRI >90 | Black | Model: Luminaire head asym | Article: 13010106-30

Notes
Can be equipped with up to three extra heads. Minimum mounting height 600 mm above ground when fitted with one luminaire head. Optional socket on extra head (Type F, max 2000W).

Technical specifications

• Material: Painted cast aluminum
• Diffuser: Microprism
• Lighting technology: LED, system power 10W
• Luminaire luminous flux: 430 lm (symmetric), 480 lm (asymmetric)
• Correlated Colour Temperature (CCT): 3000K
• SDCM: 3
• CRI: >90
• Lumen maintenance: L80 B10 @ 50,000 h
• Installation options: Buried foundation Ø76 mm or surface mounting with ground plate
• Minimum height: 600 mm above ground (one head)
• Expandable: Up to 3 extra luminaire heads
• Extra head option: Can include electrical socket Type F (max 2000W)
• Connection: Terminal block 2x4 x10 mm²
• Protection rating: IK10, IP65
• Standard colour: Black (other colours on request)
• Design: Kauppi & Kauppi 2019
• Available article references: 13005106-30, 13006106-30, 13007106-30, 13008106-30, 13009106-30, 13010106-30
