Contemporary wall light PATHFINDER

outdoorcast aluminumsculptural

Product description

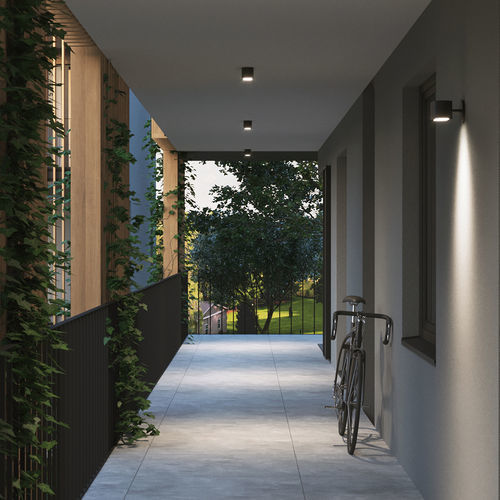

Compact, easy-to-place wall luminaire designed to illuminate thoroughfares, pathways, facades and covered areas. Sculptural, signpost-inspired form provides clear orientation and place definition. Integrated LED module. Rated IP65 for outdoor and semi-outdoor environments.

Finish
Painted cast aluminium. Diffuser in microprisma.

LED info
System power 14W. Luminaire luminous flux 865 LM. CCT 3000K. SDCM 3. CRI>90 (LED module). L80 B50 80.000H.

Installation
Surface-mounted wall installation.

Connection
On/off model: Possible with double conduit entry. Terminal block 3x2,5mm2.
Dimmable model: Double conduit entry not possible. Terminal block 5x2,5mm2.

Classification
IK10, IP65.

Design
Kauppi & Kauppi, 2019.

Standard colours
Black. Other colours on request.

Product specification (table)
POWER | LUMINAIRE FLUX | KELVIN | CRI | Color | Model | ART.
14W | 865LM | 3000K | >80 | Black | Wall | 13002106-30
14W | 865LM | 3000K | >80 | Black | Wall | 13002106D30
D = Dimmable DALI

Caractéristiques / spécifications techniques

• Power: 14W
• Luminaire luminous flux: 865 LM
• Correlated Colour Temperature (CCT): 3000K
• SDCM: 3
• Colour Rendering Index (CRI): CRI>90 (LED module) and CRI>80 (product table)
• Lifespan: L80 B50 80.000H
• Finish: Painted casted aluminum
• Diffuser: Microprisma
• Installation: Surface mounted wall
• Connection (On/Off model): Possible with double conduit entry; Terminal block 3x2,5mm2
• Connection (Dimmable model): Double conduit entry not possible; Terminal block 5x2,5mm2
• Ingress protection: IP65
• Impact protection: IK10
• Designer: Kauppi & Kauppi, 2019
• Available colour (standard): Black (other colours on request)
• Model designation: Wall
• Article numbers: 13002106-30, 13002106D30
