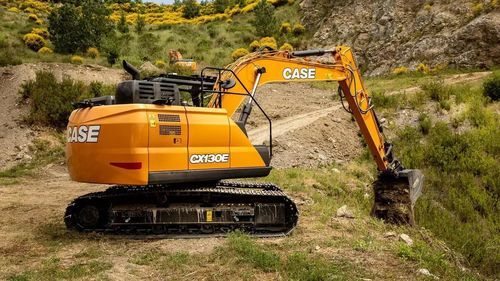

Crawler excavator CX130E

standarddieselloading

Overview
Looking for a 13 ton excavator that promises efficient productivity, enhanced versatility, cleaner power, comfortable and safer operations, and easy maintenance? Look no further than the CX130E crawler excavator. This 13 ton digger is part of the CASE E-Series. The CX130E 13 tonne digger uses an FPT NEF4 (F4HGE413A*V) engine that can power up to 76.4 kW at 2000 min-1 and has an operating weight of up to 13.9t.

Quick Specs

• Weight: 13.9 t
• Power: 76.4 kW at 2000 min-1

Standard Equipment - ENGINE

• FPT NEF4 (F4HGE413A*V) - cylinder turbocharged diesel
• Stage V
• Selective Catalytic Reduction on Filter (SCRoF)
• Diesel Oxidation Catalyst (DOC)
• EGR-free
• VGT turbocharger
• Electronic fuel injection
• High pressure common rail system
• Neutral safety start
• Auto engine warm up, emergency stop
• Glow-plug pre-heat
• EPF (Engine Protection Feature)
• Dual-stage fuel filtration
• Dual element air filter
• Remote oil filter
• Green plug oil drain
• 1,000 hour engine oil and fuel filters change interval
• 24V system
• Battery disconnect switch
• High ambient temperature cooling package
• External fuel and AdBlue gauges
• Fuel cooler
• Fuel filter + fuel prefilter with water accumulation indicator
• Fuel shut-off valve
• Idle start
• Radiator, oil cooler, intercooler – protective screen
• Refueling pump

Standard Equipment - FUEL ECONOMY SYSTEMS

• Eco mode
• Auto idle
• One-touch idle
• Idle shutdown
• Pump Torque Control (PTC)
• Boom Economy Control (BEC)
• Swing Relief Control (SRF)
• Spool Stroke Control (SSC)
• Boom Oil Regeneration (BOR)

Standard Equipment - HYDRAULICS

• Hydraulic flow control balance
• Electronically controlled hydraulic pumps
• Auto power boost
• Multifunction (hammer/high flow) circuit with electrical proportional control (not available on CX130E Long Reach)
• Auto travel speed change
• 4 selectable work modes
• Overload warning device
• ISO pattern controls
• Pre-set auxiliary pump settings
• Switch controlled auxiliary selection
• Auxiliary valve
• Hydraulic filter restriction indicator
• Oil cooler
• 5,000 hour hydraulic oil change interval
• 2,000 hour hydraulic filter change interval
• Hydraulic quick coupler provision
• Hydraulic fluid supply port with air breather

Standard Equipment - UPPERSTRUCTURE

• ISO mirrors
• Handrail – RH access
• ISO guard rails
• Isolation mounted cab (fluid and spring)
• Lifting eyes for counterweight
• Lockable fuel cap, service doors and toolbox
• Rear and side view safety camera

Standard Equipment - OPERATOR STATION

• ROPS protection
• FOPS guard OPG level 2
• Pressurized cab
• Tempered safety glass
• One-touch lock front window
• Sun visor & rain deflector
• A/C, heating and defrosting with automatic control
• Lunch box & cool box, cup holders & ashtray
• Interior dome light
• Multi-adjustable low frequency air suspension console and tiltable heated seat with air springs and double acting hydraulic damper
• Sliding seat – 90 mm
• Seat belt with fasten detection
• Adjustable armrests
• Low-effort joystick controls
• Sliding cockpit - 80 mm
• Auxiliary select system
• Aux-in port for personal electronics
• Multifunction LED color monitor (10”), with silicon switches
• 22 selectable languages for monitor
• Anti-theft system (start code system)
• Split type floor mat
• 12V electric socket
• 24V cigarette lighter
• One-piece right hand window
• 8 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 4 all-around)
• Windshield wiper / washer
• Clear (Lexan) roof window with sunshade
• Storage compartments
• On-board diagnostic system
• Travel alarm
• DAB+ Bluetooth radio with antenna and 2 speakers

Standard Equipment - ATTACHMENTS

• Standard boom 4.63 m
• Long reach boom 7.4 m (CX130E Long Reach)
• Arm 2.50 m
• Long reach arm 5.3 m (CX130E Long Reach)
• Attachment types and names storable in the display

Standard Equipment - UNDERCARRIAGE

• 600 mm steel triple grouser shoes
• 700 mm steel triple grouser shoes (only on CX130E Long Reach)
• Full overlap turntable bearing tub
• Sealed link chain
• Lashing points

Standard Equipment - TELEMATICS

• SiteConnect module and 7 years myCASEConstruction subscription with remote monitoring

Optional Equipment (selection)

• Engine oil and hydraulic oil sample port
• Clamshell circuit
• Low-flow circuit, proportional control
• Double acting circuit with electrical proportional control (only on CX130E Long Reach)
• Front cab guard - vertical bars (OPG level 2 or level 1)
• Front mesh screen, available as DIA kit
• Rain deflector
• CASE Maximum View Monitor - 270° view with additional left side camera
• 12 LED Deluxe work lights (various positions)
• Steelwrist-ready tiltrotator provision
• Hydraulic and engine oil sampling ports
• HD boom 4.63 m; Arm HD 2.10 / 3.01 m
• Various undercarriage options: 500 / 700 mm steel triple grouser shoes, 500 mm rubber link chain, double track guide

Caractéristiques / spécifications techniques

• Model: CX130E
• Series: E-Series Crawler Excavators
• Engine: FPT NEF4 (F4HGE413A*V)
• Rated power: 76.4 kW at 2000 min-1
• Operating / maximum weight: up to 13.9 t
• Emissions: Stage V with SCRoF and DOC (EGR-free)
• Fuel system: Electronic fuel injection, high pressure common rail
• Hydraulics: Electronically controlled pumps, auto power boost, 4 work modes
• Hydraulic oil change interval: 5,000 hours
• Hydraulic filter change interval: 2,000 hours
• Engine oil & fuel filters change interval: 1,000 hours
• Standard boom / arm: 4.63 m boom / 2.50 m arm; Long Reach options available (7.4 m boom / 5.3 m arm)
• Cab: ROPS, FOPS OPG level 2, pressurized cab, 10” multifunction color monitor
• Telematics: SiteConnect module with myCASEConstruction subscription (7 years)
