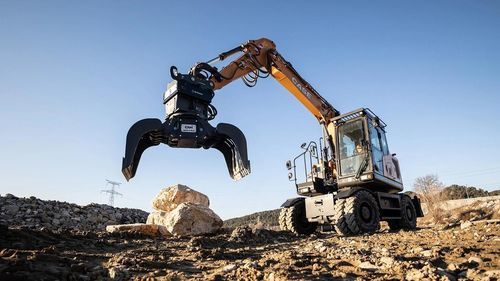

Medium excavator WX160E

rubber-tiredstandarddiesel

Overview
The WX160E wheeled excavator is an 18 t class machine designed for construction and excavation operations that require mobility, fuel efficiency and adaptable hydraulic performance. It features four selectable power modes (Heavy-duty, Standard, Eco, User) and complies with Stage V emissions when equipped with the standard engine.

Quick Specs

• Model: WX160E
• Operating weight (2PB): 18,390 kg
• Net power: 127 kW

Standard Equipment
ENGINE

• Cummins B4.5, 4-cycle, turbocharged, charge air cooled, electronically controlled diesel
• Stage V emissions (B6.7 on WX210E)
• SCR, DPF, DOC aftertreatment; EGR-free
• Wastegate turbocharger; electronic fuel injection; high-pressure common rail
• Auto engine preheat; emergency stop switch; remote oil filter
• Dual-stage air filtration; fuel cooler; 24-volt electrical system with battery disconnect
• Electric refueling pump; reversible electronically controlled cooling fan; cruise control

FUEL ECONOMY SYSTEMS

• Eco mode; auto idle; one-touch idle; idle shutdown
• Eco gauge and eco reports for operator guidance

HYDRAULICS

• Auto or manual power boost; 2-speed 4-wheel drive hydrostatic transmission
• Auto travel speed change; creep speed; selectable power and work modes including user mode
• Overload warning; boom and arm safety valves; ISO pattern controls
• Pre-set auxiliary pump settings; switch-controlled auxiliary selection; multifunction high-flow circuit with electrical proportional control
• Automatic swing brake; auto safety lock; oil cooler; hydraulic quick coupler provision
• Service intervals: hydraulic oil change 5,000 hours; tank suction strainer 2,000 hours

UPPERSTRUCTURE

• ISO mirrors and guard rails; RH handrail access; cab suspension with silencer blocks
• Lifting eyes for counterweight; lockable fuel cap, service doors and toolbox
• Rear view safety camera

OPERATOR STATION

• ROPS and FOPS OPG level 2 protection; tempered safety glass and laminated windshield
• A/C with automatic control, heating and defrosting; telescopic steering wheel
• Adjustable heated air-suspension seat; tiltable joystick console; adjustable armrests
• Multifunction 8-inch touchscreen with Android mirroring; secondary camera display; 16 monitor languages
• USB radio with MP3 and hands-free; Bluetooth; anti-theft start code system
• 6 LED work lights; parallel double windshield wiper; cup holder and storage

ATTACHMENTS (standard)

• Mono boom 5.0 m or 5.7 m; 2-piece boom 5.1 m or 5.4 m (references noted)
• Arms: 2.45 m or 2.70 m (references noted)
• Attachment types and names storable in display; selectable activation types (push, proportional, detent)

UNDERCARRIAGE

• Front oscillating axle and rear rigid axle; front axle cylinder safety valves
• Tube twin tires 10.00-20 PR 16 with stone ring; rear blade; lashing points
• LH side toolbox; wheel chocks

TELEMATICS

• 3 years advanced SiteWatch subscription with remote monitoring

Optional Equipment (selected)
ENGINE

• Engine pre-filter self-cleaning cyclonic type

HYDRAULICS

• Clamshell circuit; low-flow proportional circuit; fine swing control; swing lock control
• Joystick steering control; automatic digging brake; ride control with boom flotation (n.a. on WX210E)
• Travel speed limiter (20 km/h) (n.a. on WX210E); Panolin bio oil

UPPERSTRUCTURE (optional)

• Heavier counterweight (select mono versions); customized paint

OPERATOR STATION (optional)

• Front cab guard vertical bars (OPG level 2) with extra front lights; CASE Maximum View Monitor 360° with pedestrian recognition
• Rear radar detection; smart key; cab roof LED beacon

ATTACHMENTS (optional)

• Additional arm lengths: 2.00 m, 2.60 m; 3.10 m on select mono models

UNDERCARRIAGE (optional)

• Wide axles; solid twin tires 10.00-20; steerable plastic fenders on front axles (n.a. on WX210E)
• Trailer hitch preparation; steel fenders; rear stabilizers and blade configurations

Technical specifications

• Model: WX160E
• Operating weight (2PB): 18,390 kg
• Net power: 127 kW
• Engine: Cummins B4.5, turbocharged, charge air cooled, electronic control
• Emissions: Stage V (B6.7 on WX210E)
• Fuel system: high-pressure common rail; electronic injection; electric refueling pump
• Aftertreatment: SCR, DPF, DOC; EGR-free
• Electrical: 24-volt system with battery disconnect
• Hydraulic oil change: 5,000 hours; suction strainer: 2,000 hours
• Engine oil & filter interval: 800 hours; fuel filter interval: 1,000 hours
• Transmission: 2-speed 4-wheel drive hydrostatic; creep speed available
• Drive & undercarriage: front oscillating axle, rear rigid axle; tube twin tires 10.00-20 PR 16
• Operator features: 8-inch touchscreen, heated air-suspension seat, ROPS/FOPS protection
• Power modes: Heavy-duty, Standard, Eco, User-customizable
• Telematics: 3 years advanced SiteWatch subscription
