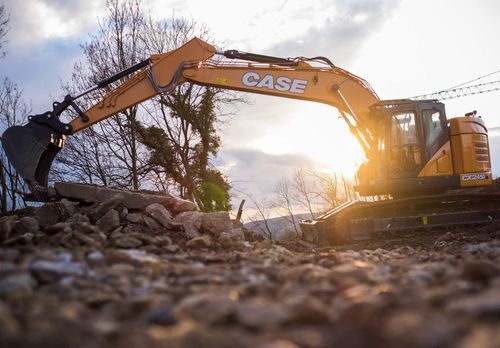

Medium excavator CX245DSR

crawlermulti-functionstandard

Overview
The CASE CX245D SR is a short-radius hydraulic excavator engineered for confined sites where footprint and maneuverability are critical. Designed with a minimum swing radius and modified boom placement, it preserves CASE D‑Series performance while enabling work close to structures and on narrow corridors. Available with mono or 2-piece boom configurations and an optional dozer blade to increase versatility.

Quick specs

• Operating weight: 26.0 t
• Rated power: 124 kW / 166 hp

Standard Equipment - ENGINE

• Isuzu 4-cylinder turbocharged diesel
• EU Stage V certified
• Selective Catalytic Reduction (SCR)
• Diesel Particulate Diffuser (DPD)
• Cooled Exhaust Gas Recirculation (CEGR)
• VGT turbocharger
• Electronic fuel injection with high-pressure common rail
• Neutral safety start; auto-engine warm up; emergency stop
• Glow-plug pre-heat and EPF (Engine Protection Feature)
• Dual-stage fuel filtration and dual element air filter
• Remote oil filter and green plug oil drain
• 500-hour engine oil change interval
• 24V electrical system with battery disconnect switch
• High ambient temperature cooling package; external fuel and AdBlue gauges
• Fuel cooler, fuel filter restriction indicator and prefilter water sensor with dedicated cabin message
• Radiator, oil cooler and intercooler protected by screening; refueling pump

Standard Equipment - FUEL ECONOMY SYSTEMS

• Auto-idle, one-touch idle and auto-idle shut-down
• Torque control and Boom Economy Control (BEC)
• Swing Relief Control (SWC) and Spool Stroke Control (SSC)
• Boom oil Regeneration Control (BRC) specific to CX245D SR

Standard Equipment - HYDRAULICS

• Electronically controlled hydraulic pumps
• Auto power boost and selectable work modes
• Multifunction circuit (hammer/high flow) with electrical proportional control
• Auto travel speed change and ISO pattern controls
• Pre-set auxiliary pump settings and switch-controlled auxiliary selection
• Auxiliary valve; safety overload warning device
• Hydraulic filter restriction indicator and oil cooler
• 5,000-hour hydraulic oil change interval; 2,000-hour hydraulic filter change interval

Standard Equipment - UPPERSTRUCTURE

• ISO mirrors and ISO guard rails
• RH handrail access and isolation-mounted cab (fluid and spring)
• Lifting eyes for counterweight; lockable fuel cap, service doors and toolbox
• Rear and side view safety camera
• Counterweight variants: 2.85 t (Blade) or 3.35 t (LC)

Standard Equipment - OPERATOR STATION

• ROPS certified cab; FOPS guard OPG level 2; pressurized cab
• Tempered safety glass; one-touch lock front window; sun visor and rain deflector
• AC/heat/defrost with auto climate control; hot & coolbox; cup holder
• Cloth-covered air-suspension high-back seat with 90 mm sliding and adjustable armrests
• Low-effort joystick controls; tilting consoles (4 positions); sliding cockpit 180 mm
• Multifunction LED colour monitor (180 mm) with 26 selectable languages
• Anti-theft start code system; on-board diagnostics; travel alarm
• DAB+ radio with antenna and 2 speakers; 8 LED work lights

Standard Equipment - ATTACHMENTS

• Mono boom 5.70 m; Arm 2.40 m (HD)
• Hydraulic quick coupler provision; safety valves and bucket linkage with hook
• Auxiliary pipe brackets; centralized lube bank; attachment cushion valve

Standard Equipment - TELEMATICS

• 3 years advanced SiteWatch subscription with remote monitoring included

Standard Equipment - UNDERCARRIAGE

• 600 mm steel triple grouser shoes; sealed link chain
• Full overlap turntable bearing tub; lashing point

Optional Equipment - HYDRAULICS

• Clamshell circuit; low-flow circuit with proportional control
• Single-acting hammer circuit with electrical proportional control (Offset version)
• Double-acting circuit with electrical proportional control (Offset version)

Optional Equipment - ATTACHMENTS

• Arm 2.4 m (HD) for 2-piece boom; Arm 2.95 m for mono and 2-piece boom

Optional Equipment - OPERATOR STATION

• Front cab guard vertical bars (OPG level 2 and level 1 options)
• CASE Maximum View Monitor 230° with additional left-side camera
• Steelwrist-ready tiltrotator provision

Optional Equipment - UPPERSTRUCTURE

• Hydraulic and engine oil sampling ports

Optional Equipment - UNDERCARRIAGE

• 600 mm rubber link chains; 700 / 800 / 900 mm steel triple grouser shoes; triple track guide

Characteristics / Technical specifications

• Model: CX245DSR
• Manufacturer / Brand: CASE
• Operating weight: 26.0 t
• Engine: Isuzu 4-cylinder turbocharged diesel, EU Stage V
• Rated power: 124 kW / 166 hp
• Emissions treatment: SCR, DPD, CEGR, VGT turbocharger, high-pressure common rail
• Engine service interval: 500-hour engine oil change
• Hydraulic service intervals: 5,000-hour oil change; 2,000-hour filter change
• Standard undercarriage shoes: 600 mm steel triple grouser (options up to 900 mm and rubber link chains)
• Operator cabin: ROPS certified, FOPS OPG level 2, pressurized cab, multifunction LED monitor
• Telematics: 3 years advanced SiteWatch subscription included
