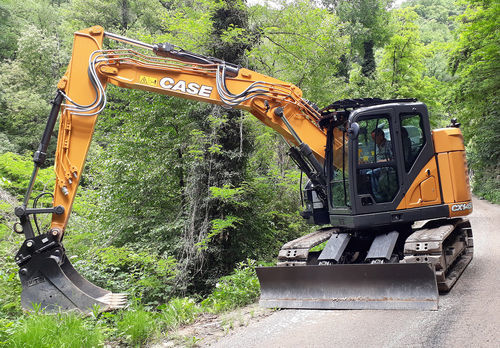

Medium excavator CX145DSR

crawlercompactstandard

Overview
Designed to provide ample digging and lifting power in a small footprint, the CX145D SR features a minimum-swing-radius design for work along roadsides and in more confined areas. With an operating weight of 14.5 tons minimum (which can be increased on Mono boom models with a heavier counterweight) and a Stage V engine, the CX145D SR offers powerful breakout force and lift capacity while delivering the hydraulic precision and responsiveness expected from CASE D-Series excavators. Availability of long carriage and blade versions, as well as mono, 2 piece and offset booms, increases the flexibility of this compact excavator.

Quick specifications

• Weight: 14.7 t
• Power: 78.5 kW / 105 hp

Standard Equipment — ENGINE

• Isuzu 4-cylinder turbo-charged diesel
• EU Stage V certified
• Selective Catalytic Reduction (SCR)
• Diesel Particulate Diffuser (DPD)
• Cooled Exhaust Gas Recirculation (CEGR)
• VGT turbocharger
• Electronic fuel injection
• High pressure common rail system
• Neutral safety start
• Auto-engine warm up, emergency stop
• Glow-plug pre-heat
• EPF (Engine Protection Feature)
• Dual-stage fuel filtration
• Dual element air filter
• Remote oil filter
• Green plug oil drain
• 500-hour engine oil change interval
• 24V system
• Battery disconnect switch
• High ambient temperature cooling package
• External fuel and AdBlue gauges
• Fuel cooler
• Fuel filter restriction indicator
• Fuel shut-off valve
• Fuel prefilter water sensor with dedicated message on cabin monitor
• Idle start
• Radiator, oil cooler, intercooler – protective screen; Refueling pump

Standard Equipment — FUEL ECONOMY SYSTEMS

• Auto-idle
• One-touch idle
• Auto-idle shut-down
• Torque control
• Boom Economy Control (BEC)
• Swing Relief Control (SWC)
• Spool Stroke Control (SSC)
• Boom oil Regeneration Control (BRC) for CX245D SR

Standard Equipment — HYDRAULICS

• Electronically controlled hydraulic pumps
• Auto power boost
• Multifunction (hammer/high flow) circuit with electrical proportional control
• Auto travel speed change
• Selectable work modes
• Overload warning device
• ISO pattern controls
• Pre-set auxiliary pump settings
• Switch controlled auxiliary selection
• Auxiliary valve
• Hydraulic filter restriction indicator
• Oil cooler
• 5,000 hour hydraulic oil change interval
• 2,000 hour hydraulic filter change interval

Standard Equipment — UPPERSTRUCTURE

• ISO mirrors
• Handrail – RH access
• ISO guard rails
• Isolation mounted cab (fluid and spring)
• Lifting eyes for counterweight
• Lockable fuel cap, service doors and toolbox
• Rear and side view safety camera
• 2.85 t counterweight (CX145D SR Blade only)
• 3.35 t counterweight (CX145D SR LC only)

Standard Equipment — OPERATOR STATION

• ROPS certified cab
• FOPS guard OPG level 2
• Pressurized cab
• Tempered safety glass
• One-touch lock front window
• Sun visor & rain deflector
• AC/heat/defrost with auto climate control
• Hot & coolbox, cup holder & ashtray
• Interior dome light
• Cloth covered air-suspension high-back seat
• Sliding seat – 90 mm
• Seat-belt
• Adjustable armrests
• Tilting consoles - 4-position
• Low-effort joystick controls
• Sliding cockpit 180 mm
• Auxiliary select system
• Aux-in port for personal electronics
• Multifunction LED color monitor (180 mm)
• 26 selectable languages for monitor
• Anti-theft system (start code system)
• Rubber floor mat
• 12V electric socket
• 24V cigarette lighter
• One-piece right hand window
• Internal & external view mirrors
• Windshield wiper / washer
• Clear (Lexan) roof window with sunshade
• Storage compartments
• On-board diagnostic system
• Travel alarm
• DAB+ radio with antenna and 2-speakers
• 8 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 4 all-around)

Standard Equipment — ATTACHMENTS

• Mono boom 4.63 m
• Arm 2.50 m
• Hydraulic quick coupler provision
• Safety valves and bucket linkage with hook
• Auxiliary pipe brackets
• Centralized lube bank
• Attachment cushion valve

Standard Equipment — TELEMATICS

• 3 years advanced SiteWatch subscription with remote monitoring

Standard Equipment — UNDERCARRIAGE

• 600 mm steel triple grouser shoes
• Full overlap turntable bearing tub
• Sealed link chain
• Lashing point

Optional Equipment — HYDRAULICS

• Clamshell circuit
• Low-flow circuit, proportional control
• Single acting hammer circuit with electrical proportional control for Offset version
• Double acting circuit with electrical proportional control for Offset version

Optional Equipment — ATTACHMENTS

• Arm 2.1 m (HD) for Mono and upon request for 2 Pieces Boom
• Arm 2.1 m for Offset version
• Arm 2.5 m for 2 Pieces Boom
• Arm 3.0 m for Mono and 2 Pieces Boom

Optional Equipment — HEAVY COUNTERWEIGHT

• 3.55 t heavy counterweight (for CX145D SR LC and CX145D SR Blade)

Optional Equipment — OPERATOR STATION

• Front cab guard - vertical bars (OPG level 2)
• Front cab guard - vertical bars (OPG level 1)
• CASE Maximum View Monitor - 230° view with additional left side camera
• Steelwrist-ready tiltrotator provision

Optional Equipment — UPPERSTRUCTURE

• Hydraulic and engine oil sampling ports

Optional Equipment — UNDERCARRIAGE

• 500 mm steel triple grouser shoes
• 500 mm rubber link chains
• 700 mm steel triple grouser shoes
• Triple track guide

Caractéristiques / spécifications techniques

• Model: CX145DSR
• Brand: CASE
• Operating/installed weight: 14.5 t minimum; quick spec weight shown as 14.7 t
• Engine: Isuzu 4-cylinder turbocharged diesel; EU Stage V emissions
• Rated power: 78.5 kW / 105 hp (quick spec)
• Alternate reported engine power: ~102 hp (noted in overview)
• Mono boom length (standard): 4.63 m
• Standard arm length: 2.50 m (optional arms: 2.1 m HD, 2.1 m offset, 2.5 m, 3.0 m)
• Counterweight options: 2.85 t (Blade), 3.35 t (LC), optional 3.55 t heavy counterweight
• Hydraulics: electronically controlled pumps, auto power boost, multifunction circuit, selectable work modes
• Undercarriage example spec: 600 mm steel triple grouser shoes (standard)
• Telematics: 3 years advanced SiteWatch subscription included
