Large excavator CX300E
crawlercompactstandard

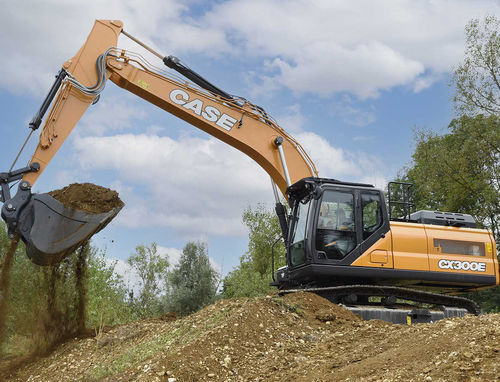

Large excavator - CX300E - Case Construction - crawler / compact / standard
Large excavator - CX300E - Case Construction - crawler / compact / standard
Large excavator - CX300E - Case Construction - crawler / compact / standard - image - 2
Add to favorites
Compare this product

Characteristics

Product line
large
Locomotion
crawler
Type
compact, standard
Other characteristics.
diesel, loading, for construction
Engine power

193.4 kW
(263 hp)

Description

Product Overview
  • Looking for big diggers that promise efficient productivity, enhanced versatility, cleaner power, comfortable and safer operations, and easy maintenance? Look no further than the CX300E crawler excavator.
  • The CASE CX300E big excavator is part of the CASE E-Series.
  • This large excavator uses an FPT NEF6 (F4HGE6138*V) engine that can power up to 193.4 kW at 1900 min-1 and has an operating weight of up to 29.7t.

Quick Specs
  • Operating weight: 29.6 t (page quick-spec shows 29.6 t; operating weight up to 29.7t noted in description)
  • Power: 193.4 kW at 1900 min-1

Standard Equipment — ENGINE
  • FPT NEF6 (F4HGE6138*V) - cylinder turbo-charged diesel
  • Stage V
  • Selective Catalytic Reduction on Filter (SCRoF)
  • Diesel Oxidation Catalyst (DOC)
  • EGR-free
  • VGT turbocharger
  • Electronic fuel injection
  • High pressure common rail system
  • Neutral safety start
  • Auto engine warm up, emergency stop
  • Glow-plug pre-heat
  • EPF (Engine Protection Feature)
  • Dual-stage fuel filtration
  • Dual element air filter
  • Remote oil filter
  • Green plug oil drain
  • 1,000 hour engine oil and fuel filters change interval
  • 24V system
  • Battery disconnect switch
  • High ambient temperature cooling package
  • External fuel and AdBlue gauges
  • Fuel cooler
  • Fuel filter + fuel prefilter with water accumulation indicator
  • Fuel shut-off valve
  • Idle start
  • Radiator, oil cooler, intercooler – protective screen
  • Refueling pump

Standard Equipment — FUEL ECONOMY SYSTEMS
  • Eco mode
  • Auto idle
  • One-touch idle
  • Idle shutdown
  • Pump Torque Control (PTC)
  • Boom Economy Control (BEC)
  • Swing Relief Control (SRF)
  • Spool Stroke Control (SSC)
  • Boom Oil Regeneration (BOR)

Standard Equipment — HYDRAULICS
  • Hydraulic flow control balance
  • Electronically controlled hydraulic pumps
  • Auto power boost
  • Multifunction (hammer/high flow) circuit with electrical proportional control
  • Auto travel speed change
  • 4 selectable work modes
  • Overload warning device
  • ISO pattern controls
  • Pre-set auxiliary pump settings
  • Switch controlled auxiliary selection
  • Auxiliary valve
  • Hydraulic filter restriction indicator
  • Oil cooler
  • 5,000 hour hydraulic oil change interval
  • 2,000 hour hydraulic filter change interval
  • Hydraulic quick coupler provision
  • Hydraulic fluid supply port with air breather

Standard Equipment — UPPERSTRUCTURE
  • ISO mirrors
  • Handrail – RH access
  • ISO guard rails
  • Isolation mounted cab (fluid and spring)
  • Lifting eyes for counterweight
  • Lockable fuel cap, service doors and toolbox
  • Rear and side view safety camera

Standard Equipment — OPERATOR STATION
  • ROPS protection
  • FOPS guard OPG level 2
  • Pressurized cab
  • Tempered safety glass
  • One-touch lock front window
  • Sun visor & rain deflector
  • A/C, heating and defrosting with automatic control
  • Lunch box & cool box, cup holders & ashtray
  • Interior dome light
  • Multi-adjustable low frequency air suspension console and tiltable heated seat with air springs and double acting hydraulic damper
  • Sliding seat – 90 mm
  • Seat belt with fasten detection
  • Adjustable armrests
  • Low-effort joystick controls
  • Sliding cockpit - 80 mm
  • Auxiliary select system
  • Aux-in port for personal electronics
  • Multifunction LED color monitor (10”), with silicon switches
  • 22 selectable languages for monitor
  • Anti-theft system (start code system)
  • Split type floor mat
  • 12V electric socket
  • 24V cigarette lighter
  • One-piece right hand window
  • 8 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 4 all-around)
  • Windshield wiper / washer
  • Clear (Lexan) roof window with sunshade
  • Storage compartments
  • On-board diagnostic system
  • Travel alarm
  • DAB+ Bluetooth radio with antenna and 2 speakers

Standard Equipment — ATTACHMENTS
  • Standard boom 6.15 m
  • Arm 3.18 m
  • Attachment types and names storable in the display

Standard Equipment — UNDERCARRIAGE
  • 600 mm steel triple grouser shoes
  • Full overlap turntable bearing tub
  • Sealed link chain
  • Lashing points

Standard Equipment — TELEMATICS
  • SiteConnect module and 7 years myCASEConstruction subscription with remote monitoring

Optional / Additional Configurations (listed on page)
  • Engine precleaner cyclonic type
  • Clamshell circuit
  • Low-flow circuit, proportional control
  • Hydraulic and engine oil sampling ports
  • Front cab guard - vertical bars (OPG level 2 and OPG level 1)
  • Front mesh screen, available as DIA kit
  • Rain deflector
  • CASE Maximum View Monitor - 270° view with additional left side camera
  • 12 LED Deluxe work lights (4 cab roof, 1 LH boom, 1 RH boom, 1 boom foot, 1 toolbox, 4 all-around)
  • Steelwrist-ready tiltrotator provision
  • Arm HD options: 2.65 / 3.66 m
  • Undercarriage shoe options: 700 / 800 mm steel triple grouser shoes; triple track guide

Compatible Attachments (examples shown)
  • Buckets for Direct Fit and G type quick coupler
  • Buckets for Direct Fit or MultiFit quick coupler
  • G type hydraulic quick coupler
  • Hydraulic quick coupler MultiFit "S"

Caractéristiques / Spécifications techniques
  • Model: CX300E
  • Manufacturer / Brand: CASE
  • Engine: FPT NEF6 (F4HGE6138*V), turbocharged diesel
  • Rated power: 193.4 kW at 1900 min-1
  • Operating / approximate weight: ~29.6–29.7 t
  • Standard boom: 6.15 m
  • Standard arm: 3.18 m (alternative arm HD options 2.65 / 3.66 m)
  • Standard undercarriage shoes: 600 mm steel triple grouser (options 700 / 800 mm)
  • Telematics: SiteConnect module with 7 years myCASEConstruction subscription (remote monitoring)
  • Hydraulic oil change interval: 5,000 hours; hydraulic filter change interval: 2,000 hours
  • Engine oil & fuel filter change interval: 1,000 hours
