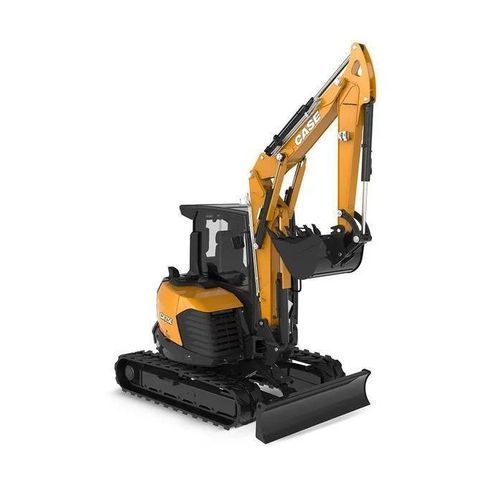

Mini excavator CX75E

crawlerhandlingcompact

Overview
CX75E is a 2-piece-boom compact excavator delivering superior dumping height, extended horizontal reach and the capability to dig closer to the undercarriage thanks to its dual-hinge boom geometry. Built on a wider undercarriage and longer arm than smaller models, it offers increased stability, higher lifting capacity and greater digging depth and reach for improved productivity.
Equipped with a Stage V 44.3 kW engine and an electronically controlled load-sensing variable volume pump, the machine minimizes fuel consumption while ensuring precise hydraulic performance. The tiltable cab, advanced controls and operator comfort features make it suitable for demanding construction and rental fleet applications.

Quick specifications
Engine power: 44.3 kW - 60.2 hp
Operating weight: 7580 kg

Standard Equipment

• Tiltable cab (ROP/TOPS - FOPS Level 1)
• Automatic air conditioning and heating
• Automatic courtesy light
• DAB radio with Bluetooth, USB and Aux-in (cab)
• Electric roof socket for rotating beacon
• Windshield washer
• Rear-view mirrors (left, right, rear)
• Fabric seat with premium mechanical suspension
• Standard arm
• 2-piece boom with electro-hydraulic proportional control
• Boom lift and dozer blade cylinder protection
• Additional light counterweight
• Air filter with drain valve and electric clogging indicator
• Hydraulic reversible fan drive with automatic control
• Electric fuel refill pump with auto-stop
• Servo-assisted hydraulic joysticks with electro-hydraulic proportional controls
• Electro-hydraulic proportional swing control
• 1st and 2nd auxiliary circuits (AUX1, AUX2) with proportional control
• Digital cluster with AUX1, AUX2 and AUX3 flow settings
• Block valves on swing and 2-piece boom positioner cylinders
• Electric diverter between single and double effect AUX1
• Direct drainage to tank
• 2-speed travel with automatic shift down/up
• Electronic proportional RPM control with auto-idle
• Rubber tracks
• Standard dozer blade
• Operator manual and ignition key
• Standard LED working lights (boom, right-front hood, cab-front)
• Battery disconnect switch
• Variable volume pump
• Standard hydraulic oil and lubricants
• CASE SiteWatch and SiteConnect
• ROPS/TOPS - FOPS Level 2 grid
• Object handling kit (block valves on boom and arm, lifting hook, load chart)

Optional Equipment

• Anti-theft system
• Fabric seat with pneumatic suspension
• Fabric seat with pneumatic suspension and heating
• Rear view camera
• Travel alarm
• Long arm
• Additional heavy counterweight
• Grapple provision (AUX3 with flow diverter)
• Block valves on dozer blade cylinder
• Steel tracks
• Dozer float
• Extra LED working lights (cab-rear)
• Rotating beacon
• Bio hydraulic oil and lubricants
• Automatic centralized lubrication
• High-flow provision (max 60 l/min at 180 bar)
• Hydraulic quick coupler provision (single or double effect)
• Mechanical and hydraulic quick couplers
• Buckets

Compatible Attachments

• AR quick coupler (mechanical or hydraulic)
• CR quick coupler (semi-automatic reversible)
• CS quick coupler (semi-automatic)
• Buckets (wide range for various couplers)

Technical specifications

• Model: CX75E
• Engine power: 44.3 kW (60.2 hp)
• Operating weight (ISO 6016, with rubber tracks, bucket, operator and full fuel tank): 7580 kg
• Boom type: 2-piece boom (electro-hydraulic proportional control)
• Auxiliary circuits: up to 3 (AUX1, AUX2, AUX3) with electro-hydraulic proportional control and digital cluster flow settings
• Hydraulics: variable volume pump; hydraulic reversible fan drive with automatic control
• Travel: 2-speed travel with automatic shift down and shift-up
• Undercarriage: rubber tracks (steel tracks optional)
• Cab: tiltable cab (ROP/TOPS) with automatic air conditioning and heating; fabric seat (mechanical suspension standard; pneumatic optional)
• Safety & handling: ROPS/TOPS - FOPS Level 2 grid available; object handling kit included
• Serviceability: electric fuel refill pump with auto-stop; battery disconnect switch; direct drainage to tank
• Electrical & lighting: standard LED working lights; extra LED rear optional
• Attachments compatibility: AR, CR, CS quick couplers, buckets and hydraulic/mechanical couplers
