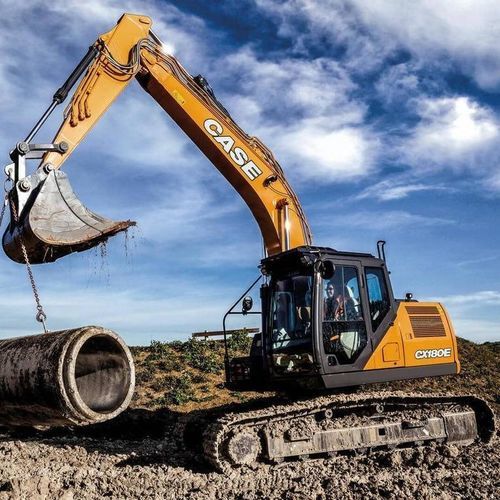

Large excavator CX180E

crawlerhandlingcompact

Product overview
Looking for a crawler excavator that promises efficient productivity, enhanced versatility, cleaner power, comfortable and safer operations, and easy maintenance? Look no further than the CX180E crawler excavator. The CASE CX180E crawler excavator is part of the CASE E-Series. This excavator uses an FPT NEF4 (F4HGE413B*V) engine that can deliver up to 90.4 kW at 2200 min-1 and has an operating weight of up to 18.4 t.

Quick specs

• Weight: 18.4 t
• Power: 90.4 kW at 2200 min-1

Standard Equipment — ENGINE

• FPT NEF4 (F4HGE413B*V) - cylinder turbocharged diesel
• Stage V
• Selective Catalytic Reduction on Filter (SCRoF)
• Diesel Oxidation Catalyst (DOC)
• EGR-free
• VGT turbocharger
• Electronic fuel injection
• High pressure common rail system
• Neutral safety start
• Auto engine warm up, emergency stop
• Glow-plug pre-heat
• EPF (Engine Protection Feature)
• Dual-stage fuel filtration
• Dual element air filter
• Remote oil filter
• Green plug oil drain
• 1,000 hour engine oil and fuel filters change interval
• 24V system
• Battery disconnect switch
• High ambient temperature cooling package
• External fuel and AdBlue gauges
• Fuel cooler
• Fuel filter + fuel prefilter with water accumulation indicator
• Fuel shut-off valve
• Idle start
• Radiator, oil cooler, intercooler – protective screen
• Refueling pump

Standard Equipment — FUEL ECONOMY SYSTEMS

• Eco mode
• Auto idle
• One-touch idle
• Idle shutdown
• Pump Torque Control (PTC)
• Boom Economy Control (BEC)
• Swing Relief Control (SRF)
• Spool Stroke Control (SSC)
• Boom Oil Regeneration (BOR)

Standard Equipment — HYDRAULICS

• Hydraulic flow control balance
• Electronically controlled hydraulic pumps
• Auto power boost
• Multifunction (hammer/high flow) circuit with electrical proportional control
• Auto travel speed change
• 4 selectable work modes
• Overload warning device
• ISO pattern controls
• Pre-set auxiliary pump settings
• Switch controlled auxiliary selection
• Auxiliary valve
• Hydraulic filter restriction indicator
• Oil cooler
• 5,000 hour hydraulic oil change interval
• 2,000 hour hydraulic filter change interval
• Hydraulic quick coupler provision
• Hydraulic fluid supply port with air breather

Standard Equipment — UPPERSTRUCTURE

• ISO mirrors
• Handrail – RH access
• ISO guard rails
• Isolation mounted cab (fluid and spring)
• Lifting eyes for counterweight
• Lockable fuel cap, service doors and toolbox
• Rear and side view safety camera

Standard Equipment — OPERATOR STATION

• ROPS protection
• FOPS guard OPG level 2
• Pressurized cab
• Tempered safety glass
• One-touch lock front window
• Sun visor & rain deflector
• A/C, heating and defrosting with automatic control
• Lunch box & cool box, cup holders & ashtray
• Interior dome light
• Multi-adjustable low frequency air suspension console and tiltable heated seat with air springs and double acting hydraulic damper
• Sliding seat – 90 mm
• Seat belt with fasten detection
• Adjustable armrests
• Low-effort joystick controls
• Sliding cockpit - 80 mm
• Auxiliary select system
• Aux-in port for personal electronics
• Multifunction LED color monitor (10”), with silicon switches
• 22 selectable languages for monitor
• Anti-theft system (start code system)
• Split type floor mat
• 12V electric socket
• 24V cigarette lighter
• One-piece right hand window
• 8 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 4 all-around)
• Windshield wiper / washer
• Clear (Lexan) roof window with sunshade
• Storage compartments
• On-board diagnostic system
• Travel alarm
• DAB+ Bluetooth radio with antenna and 2 speakers

Standard Equipment — ATTACHMENTS

• Standard boom 5.15 m
• Arm 2.62 m
• Attachment types and names storable in the display

Standard Equipment — UNDERCARRIAGE

• 600 mm steel triple grouser shoes
• Full overlap turntable bearing tub
• Sealed link chain
• Lashing points

Standard Equipment — TELEMATICS

• SiteConnect module and 7 years myCASEConstruction subscription with remote monitoring

Optional Equipment — ENGINE

• Engine oil and hydraulic oil sample port

Optional Equipment — HYDRAULICS

• Clamshell circuit
• Low-flow circuit, proportional control

Optional Equipment — OPERATOR STATION

• Front cab guard - vertical bars (OPG level 2)
• Front cab guard - vertical bars (OPG level 1)
• Front mesh screen, available as DIA kit
• Rain deflector
• CASE Maximum View Monitor - 270° view with additional left side camera
• 12 LED Deluxe work lights (4 cab roof, 1 LH boom, 1 RH boom, 1 boom foot, 1 toolbox, 4 all-around)
• Steelwrist-ready tiltrotator provision

Optional Equipment — UPPERSTRUCTURE

• Hydraulic and engine oil sampling ports

Optional Equipment — ATTACHMENTS

• Arm HD 3.05 m

Optional Equipment — UNDERCARRIAGE

• 700 / 800 mm steel triple grouser shoes
• Triple track

Compatible Attachments

• Buckets for Direct Fit and G type quick coupler
• Buckets for Direct Fit or MultiFit quick coupler
• G type hydraulic quick coupler
• Hydraulic quick coupler MultiFit "S"

Technical specifications

• Model: CX180E
• Brand: CASE
• Engine model: FPT NEF4 (F4HGE413B*V)
• Rated power: 90.4 kW at 2200 min-1
• Operating weight: 18.4 t
• Emission level: Stage V (with SCRoF and DOC)
• Standard boom: 5.15 m; standard arm: 2.62 m (optional Arm HD 3.05 m)
• Standard undercarriage shoes: 600 mm steel triple grouser (optional 700 / 800 mm)
• Hydraulics: electronically controlled pumps, auto power boost, 4 work modes, auxiliary circuits and quick coupler provision
• Cab: ROPS, FOPS OPG level 2, pressurized cab, 10" multifunction LED monitor, heated suspension seat
• Telematics: SiteConnect module with 7 years myCASEConstruction subscription (remote monitoring)
