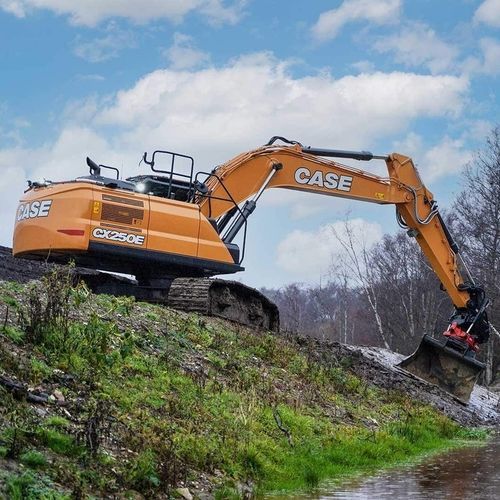

Large excavator CX250E

crawlercompactstandard

Overview
Are you looking for a 25 tonne excavator for sale that promises efficient productivity, enhanced versatility, cleaner power, comfortable and safer operations, and easy maintenance? Look no further than CASE Construction’s 25 ton digger, the CX250E crawler excavator. This crawler excavator is part of the CASE E-Series. The 25 ton digger uses an FPT NEF6 (F4HGE613P*V) cylinder turbo-charged diesel engine that can power up to 133.4 kW at 2000 min-1 and has an operating weight of up to 25.5t.

Quick specifications

• Weight: 25.5 t
• Power: 133.4 kW at 2000 min-1

Standard Equipment
ENGINE

• FPT NEF6 (F4HGE613P*V) -cylinder turbo-charged diesel
• Stage V
• Selective Catalytic Reduction on Filter (SCRoF)
• Diesel Oxidation Catalyst (DOC)
• EGR-free
• VGT turbocharger
• Electronic fuel injection
• High pressure common rail system
• Neutral safety start
• Auto engine warm up, emergency stop
• Glow-plug pre-heat
• EPF (Engine Protection Feature)
• Dual-stage fuel filtration
• Dual element air filter
• Remote oil filter
• Green plug oil drain
• 1,000 hour engine oil and fuel filters change interval
• 24V system
• Battery disconnect switch
• High ambient temperature cooling package
• External fuel and AdBlue gauges
• Fuel cooler
• Fuel filter + fuel prefilter with water accumulation indicator
• Fuel shut-off valve
• Idle start
• Radiator, oil cooler, intercooler – protective screen
• Refueling pump

FUEL ECONOMY SYSTEMS

• Eco mode
• Auto idle
• One-touch idle
• Idle shutdown
• Pump Torque Control (PTC)
• Boom Economy Control (BEC)
• Swing Relief Control (SRF)
• Spool Stroke Control (SSC)
• Boom Oil Regeneration (BOR)

HYDRAULICS

• Hydraulic flow control balance
• Electronically controlled hydraulic pumps
• Auto power boost
• Multifunction (hammer/high flow) circuit with electrical proportional control (n.a. on CX250E Long Reach)
• Auto travel speed change
• 4 selectable work modes
• Overload warning device
• ISO pattern controls
• Pre-set auxiliary pump settings
• Switch controlled auxiliary selection
• Auxiliary valve
• Hydraulic filter restriction indicator
• Oil cooler
• 5,000 hour hydraulic oil change interval
• 2,000 hour hydraulic filter change interval
• Hydraulic quick coupler provision
• Hydraulic fluid supply port with air breather

UPPERSTRUCTURE

• ISO mirrors
• Handrail – RH access
• ISO guard rails
• Isolation mounted cab (fluid and spring)
• Lifting eyes for counterweight
• Lockable fuel cap, service doors and toolbox
• Rear and side view safety camera

OPERATOR STATION

• ROPS protection
• FOPS guard OPG level 2
• Pressurized cab
• Tempered safety glass
• One-touch lock front window
• Sun visor & rain deflector
• A/C, heating and defrosting with automatic control
• Lunch box & cool box, cup holders & ashtray
• Interior dome light
• Multi-adjustable low frequency air suspension console and tiltable heated seat with air springs and double acting hydraulic damper
• Sliding seat – 90 mm
• Seat belt with fasten detection
• Adjustable armrests
• Low-effort joystick controls
• Sliding cockpit - 80 mm
• Auxiliary select system
• Aux-in port for personal electronics
• Multifunction LED color monitor (10”), with silicon switches
• 22 selectable languages for monitor
• Anti-theft system (start code system)
• Split type floor mat
• 12V electric socket
• 24V cigarette lighter
• One-piece right hand window
• 8 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 4 all-around)
• Windshield wiper / washer
• Clear (Lexan) roof window with sunshade
• Storage compartments
• On-board diagnostic system
• Travel alarm
• DAB+ Bluetooth radio with antenna and 2 speakers

ATTACHMENTS (Standard)

• Standard boom 5.85 m
• Long reach boom 10.3 m [CX250E Long Reach]
• Arm 3.00 m
• Long reach arm 8.0 m [CX250E Long Reach]
• Attachment types and names storable in the display

UNDERCARRIAGE

• 600 mm steel triple grouser shoes
• Full overlap turntable bearing tub
• Sealed link chain
• Lashing points

TELEMATICS

• SiteConnect module and 7 years myCASEConstruction subscription with remote monitoring

Optional Equipment
ENGINE

• Engine precleaner cyclonic type
• Reversible fan

HYDRAULICS

• Clamshell circuit
• Low-flow circuit, proportional control
• Double acting circuit with electrical proportional control [only on CX250E Long Reach]

UPPERSTRUCTURE (optional)

• Hydraulic and engine oil sampling ports
• Automatic greasing system

OPERATOR STATION (optional)

• Front cab guard - vertical bars (OPG level 2)
• Front cab guard - vertical bars (OPG level 1)
• Front mesh screen, available as DIA kit
• Rain deflector
• CASE Maximum View Monitor - 270° view with additional left side camera
• 12 LED Deluxe work lights (4 cab roof, 1 LH boom, 1 RH boom, 1 boom foot, 1 toolbox, 4 all-around)
• Steelwrist-ready tiltrotator provision

ATTACHMENTS (optional)

• Arm HD 2.50 / 3.52 m

UNDERCARRIAGE (optional)

• 700 / 800 mm steel triple grouser shoes
• 900 mm steel triple grouser shoes [for swampy grounds, only on CX250E LC]
• Triple track guide

Compatible Attachments

• Buckets for Direct Fit and G type quick coupler
• Buckets for Direct Fit or MultiFit quick coupler
• G type hydraulic quick coupler
• Hydraulic quick coupler MultiFit "S"

Caractéristiques / spécifications techniques

• Model: CX250E
• Series: CASE E-Series
• Engine: FPT NEF6 (F4HGE613P*V) turbo-charged diesel
• Rated power: 133.4 kW at 2000 min-1
• Operating weight: up to 25.5 t
• Emissions: Stage V
• Telematics: SiteConnect module with 7 years myCASEConstruction subscription (remote monitoring)
• Standard boom: 5.85 m; Long reach boom available: 10.3 m
• Standard arm: 3.00 m; Long reach arm option: 8.0 m
