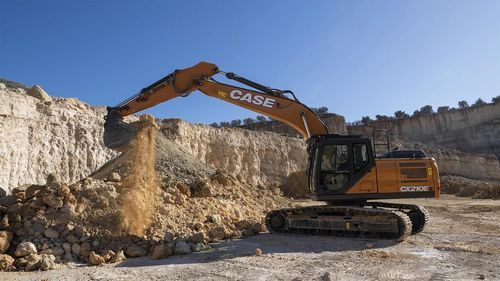

Crawler excavator CX210E-S

compactstandarddiesel

Overview
The CX210E-S is an essential-spec hydraulic crawler excavator optimized for contractor and rental fleets. It features a reinforced front-end, undercarriage and lower structure adding approximately 500 kg versus the CX210E, with an available optional +500 kg counterweight for heavier attachments. Lifting capacity, drawbar pull and breakout forces remain comparable to the CX210E, while the machine benefits from CASE services including extended warranty, planned maintenance, inspections, fluid analysis, maintenance kits and telematics.

Quick specifications

• Model: CX210E-S
• Weight: 22.5 t
• Rated power: 120.4 kW @ 1800 min-1
• Standard boom/arm: HD boom 5.7 m / HD arm 2.94 m (optional 2.40 m arm)

Standard Equipment — ENGINE

• FPT NEF6 (F4HGE613Z*V) turbocharged diesel engine
• Stage V emissions
• Selective Catalytic Reduction on Filter (SCRoF)
• Diesel Oxidation Catalyst (DOC)
• EGR-free configuration
• VGT turbocharger
• Electronic fuel injection, high-pressure common rail
• Neutral safety start; auto engine warm-up; emergency stop
• Glow-plug pre-heat; EPF (Engine Protection Feature)
• Dual-stage fuel filtration; dual element air filter; remote oil filter
• Green plug oil drain; 1,000 hour engine oil and fuel filter change interval
• 24-volt electrical system; battery disconnect switch
• High ambient temperature cooling package; external fuel and AdBlue gauges; fuel cooler
• Fuel filter + prefilter with water accumulation indicator; fuel shut-off valve
• Radiator, oil cooler and intercooler; protective screen; refueling pump

Standard Equipment — FUEL ECONOMY SYSTEMS

• Eco mode; Auto idle; One-touch idle; Idle shutdown
• Pump Torque Control (PTC); Boom Economy Control (BEC)
• Swing Relief Control (SRF); Spool Stroke Control (SSC)
• Boom Oil Regeneration (BOR)

Standard Equipment — HYDRAULICS

• Hydraulic flow control balance; electronically controlled hydraulic pumps
• Auto power boost; auto travel speed change; 4 selectable work modes
• Overload warning device; ISO pattern controls
• Pre-set auxiliary pump settings; switch-controlled auxiliary selection; auxiliary valve
• Hydraulic filter restriction indicator; multifunction (hammer/high flow) circuit with electrical proportional control
• Oil cooler; 5,000 hour hydraulic oil change interval; 2,000 hour hydraulic filter change interval
• Hydraulic quick coupler provision; hydraulic fluid supply port with air breather

Standard Equipment — UPPERSTRUCTURE

• ISO mirrors; handrail for RH access; ISO guard rails
• Isolation-mounted cab (fluid and spring mounts)
• Lifting eyes for counterweight; lockable fuel cap, service doors and toolbox
• Rear and side view safety camera

Standard Equipment — OPERATOR STATION

• ROPS protection; FOPS guard OPG level 2; pressurized cab with tempered safety glass
• One-touch lock front window; sun visor & rain deflector
• A/C, heating and defrost with automatic control
• Lunch box & cool box, cup holders & ashtray; interior dome light
• Multi-adjustable low-frequency air suspension console and tiltable heated seat with air springs and double-acting hydraulic damper
• Sliding seat (90 mm) and sliding cockpit (80 mm); seat belt with fasten detection; adjustable armrests
• Low-effort joystick controls; auxiliary select system; aux-in port for personal electronics
• Multifunction LED colour monitor (10”) with silicon switches; 22 selectable languages
• Anti-theft start code system; travel alarm; AM/FM Bluetooth radio with antenna and 2 speakers
• 7 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 3 all-around); windshield wiper/washer; clear (Lexan) roof window with sunshade
• Storage compartments; on-board diagnostic system; split type floor mat; 12-volt socket; 24-volt cigarette lighter

Standard Equipment — ATTACHMENTS

• Standard HD boom 5.7 m; HD arm 2.94 m
• Attachment types and names storable in the display

Standard Equipment — UNDERCARRIAGE

• 600 mm steel triple grouser HD shoes
• Full overlap turntable bearing tub; sealed link chain
• Lashing points

Standard Equipment — TELEMATICS

• SiteConnect module and 7 years myCASEConstruction subscription with remote monitoring

Optional Equipment

• Hydraulics: low-flow circuit, proportional control
• Upperstructure: additional +500 kg counterweight
• Attachments: optional HD arm 2.40 m
• Undercarriage: alternative arm 2.40 m

Compatible attachments (examples)

• Buckets for Direct Fit and G-type quick coupler
• Buckets for Direct Fit or MultiFit quick coupler
• G-type hydraulic quick coupler; Hydraulic quick coupler MultiFit "S"

Technical specifications

• Model: CX210E-S
• Weight (typical / quick spec): 22.5 t
• Engine: FPT NEF6 (F4HGE613Z*V) turbocharged diesel, Stage V, VGT turbocharger, high-pressure common rail
• Rated power: 120.4 kW @ 1800 min-1
• Emission controls: SCRoF, DOC, EGR-free
• Hydraulic service intervals: 5,000 hour oil change; 2,000 hour filter change
• Standard boom/arm: HD boom 5.7 m / HD arm 2.94 m (optional 2.40 m arm)
• Undercarriage: 600 mm steel triple grouser HD shoes, sealed link chain
• Operator station: Pressurized ROPS/FOPS cab, 10" multifunction LED colour monitor, heated seat, A/C
• Telematics: SiteConnect module with 7 years myCASEConstruction subscription
