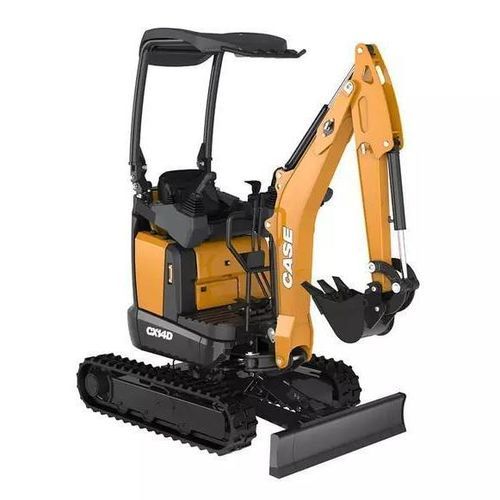

Mini excavator CX14D

crawlerstandarddiesel

Overview
The CX14D mini excavator belongs to the D-Series mini-excavators. With an operating weight of 1,360 kg and powered by a D722 engine delivering up to 11.8 hp, the CX14D offers a compact profile suited to confined job sites while providing hydraulic versatility and simple maintenance.

Quick specifications

• Operating weight: 1,360 kg (with Roll-bar)
• Digging depth: 1,860 mm
• Engine: D722, up to 11.8 hp

Standard Equipment

• Tiltable Roll-bar (ROPS/TOPS)
• Vinyl seat with mechanical suspension (canopy)
• Standard arm
• Boom lift cylinder and dozer blade cylinder protection
• Additional counterweight
• Servo-assisted hydraulic joysticks with electro-hydraulic proportional controls
• Electro-hydraulic proportional swing control
• 1st Auxiliary (AUX1) circuit with electro-hydraulic proportional control
• Mechanical diverter between single effect and double effect AUX1
• 2-speed travel with Automatic Shift Down and Shift-up
• Rubber tracks
• Standard dozer blade
• Extendable undercarriage
• Operator manual
• Ignition key which opens every machine lock
• Standard LED working lights (boom)
• Battery disconnect switch
• Variable volume pump
• Standard hydraulic oil and lubricants

Optional Equipment

• Roll-bar plastic cover (FOPS Level 1)
• Anti-theft
• Travel alarm
• Long arm
• 2nd Auxiliary (AUX2) circuit with electro-hydraulic proportional control
• Extra LED working lights (roof)
• Rotating beacon
• CASE Sitewatch and SiteConnect
• Bio hydraulic oil and lubricants
• Mechanical quick couplers
• Buckets

Compatible Attachments

• AR Quick Coupler (mechanical or hydraulic)
• CR Quick Coupler (mechanical or hydraulic)
• CS Quick Coupler (mechanical or hydraulic)
• Buckets (wide range of buckets for various couplers)

Technical specifications

• Model: CX14D
• Series: D-Series Mini-Excavators
• Operating weight: 1,360 kg (with Roll-bar)
• Engine: D722, up to 11.8 hp
• Digging depth: 1,860 mm
• Tracks: Rubber tracks
• Undercarriage: Extendable undercarriage
• Travel: 2-speed travel with Automatic Shift Down and Shift-up
• Hydraulics: Variable volume pump; standard hydraulic oil and lubricants (bio hydraulic oil available as option)
• Auxiliary circuits: 1st Auxiliary (AUX1) electro-hydraulic proportional (AUX2 available as option)
• Operator environment: Vinyl seat with mechanical suspension (canopy), ignition key
• Safety: Tiltable Roll-bar (ROPS/TOPS)
• Lighting: Standard LED working lights (boom); extra roof LEDs optional
• Protection: Boom lift cylinder and dozer blade cylinder protection
