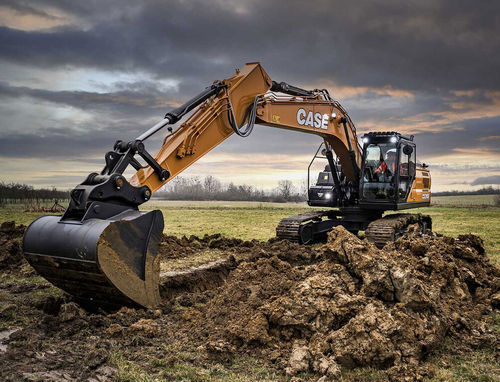

Large excavator CX210E

crawlercompactstandard

Overview
Looking for a 20 tonne digger that promises efficient productivity, enhanced versatility, cleaner power, comfortable and safer operations, and easy maintenance? The CX210E crawler excavator is part of the CASE E-Series. Available in mono and 2-piece boom versions, the CX210E uses an FPT NEF6 (F4HGE613Z*V) 6-cylinder turbo‑charged diesel engine delivering up to 120.4 kW at 1800 min-1 and has an operating weight of up to 22.3 t.

Quick Specifications

• Operating weight: up to 22.3 t
• Engine power: 120.4 kW at 1800 min-1

Standard Equipment — Engine

• FPT NEF6 (F4HGE613Z*V) 6-cylinder turbo-charged diesel
• Stage V emissions
• Selective Catalytic Reduction on Filter (SCRoF)
• Diesel Oxidation Catalyst (DOC)
• EGR-free
• VGT turbocharger
• Electronic fuel injection
• High pressure common rail system
• Neutral safety start
• Auto engine warm up, emergency stop
• Glow-plug pre-heat
• EPF (Engine Protection Feature)
• Dual-stage fuel filtration
• Dual element air filter
• Remote oil filter
• Green plug oil drain
• 1,000 hour engine oil and fuel filters change interval
• 24V electrical system
• Battery disconnect switch
• High ambient temperature cooling package
• External fuel and AdBlue gauges
• Fuel cooler
• Fuel filter + fuel prefilter with water accumulation indicator
• Fuel shut-off valve
• Idle start
• Radiator, oil cooler, intercooler – protective screen
• Refueling pump

Standard Equipment — Fuel Economy Systems

• Eco mode
• Auto idle
• One-touch idle
• Idle shutdown
• Pump Torque Control (PTC)
• Boom Economy Control (BEC)
• Swing Relief Control (SRF)
• Spool Stroke Control (SSC)
• Boom Oil Regeneration (BOR)

Standard Equipment — Hydraulics

• Hydraulic flow control balance
• Electronically controlled hydraulic pumps
• Multifunction (hammer/high flow) circuit with electrical proportional control (not available on CX210E Long Reach)
• Auto power boost
• Auto travel speed change
• 4 selectable work modes
• Overload warning device
• ISO pattern controls
• Pre-set auxiliary pump settings
• Switch controlled auxiliary selection
• Auxiliary valve
• Hydraulic filter restriction indicator
• Oil cooler
• 5,000 hour hydraulic oil change interval
• 2,000 hour hydraulic filter change interval
• Hydraulic quick coupler provision
• Hydraulic fluid supply port with air breather

Standard Equipment — Upperstructure

• ISO mirrors
• Handrail – right-hand access
• ISO guard rails
• Isolation mounted cab (fluid and spring)
• Lifting eyes for counterweight
• Lockable fuel cap, service doors and toolbox
• Rear and side view safety camera

Standard Equipment — Operator Station

• ROPS protection
• FOPS guard OPG level 2
• Pressurized cab
• Tempered safety glass
• One-touch lock front window
• Sun visor & rain deflector
• A/C, heating and defrosting with automatic control
• Lunch box & cool box, cup holders & ashtray
• Interior dome light
• Multi-adjustable low frequency air suspension console and tiltable heated seat with air springs and double acting hydraulic damper
• Sliding seat – 90 mm
• Seat belt with fasten detection
• Adjustable armrests
• Low-effort joystick controls
• Sliding cockpit - 80 mm
• Auxiliary select system
• Aux-in port for personal electronics
• Multifunction LED color monitor (10”), with silicon switches
• 22 selectable languages for monitor
• Anti-theft system (start code system)
• Split type floor mat
• 12V electric socket
• 24V cigarette lighter
• One-piece right hand window
• 8 LED work lights (2 cab roof, 1 LH boom, 1 toolbox, 4 all-around)
• Windshield wiper / washer
• Clear (Lexan) roof window with sunshade
• Storage compartments
• On-board diagnostic system
• Travel alarm
• DAB+ Bluetooth radio with antenna and 2 speakers

Standard Equipment — Attachments

• Standard boom 5.7 m
• 2-piece boom
• Long reach boom 8.7 m
• Arm 2.94 m
• Long reach arm 6.4 m
• Attachment types and names storable in the display

Standard Equipment — Undercarriage

• 600 mm steel triple grouser shoes
• Full overlap turntable bearing tub
• Sealed link chain
• Lashing points

Standard Equipment — Telematics

• SiteConnect module and 7 years myCASEConstruction subscription with remote monitoring

Optional Equipment (selection)

• Engine precleaner cyclonic type
• Reversible fan
• Clamshell circuit
• Low-flow circuit, proportional control
• Double acting circuit with electrical proportional control (only on CX210E Long Reach)
• Additional +500 kg counterweight (only on CX210E LC)
• Hydraulic and engine oil sampling ports
• Automatic greasing system (not available on CX210E Long Reach)
• Optional arm 2.40 m
• Front cab guard options (vertical bars OPG level 1 & 2), mesh screen DIA kit
• CASE Maximum View Monitor - 270° view with additional left side camera
• 12 LED Deluxe work lights (only on CX210E Mono)
• Steelwrist-ready tiltrotator provision
• Various shoe widths (500 / 600 / 700 / 800 / 900 mm) and triple track guide options depending on configuration

Compatible Attachments (examples)

• Buckets for Direct Fit and G type quick coupler
• Buckets for Direct Fit or MultiFit quick coupler
• G type hydraulic quick coupler
• Hydraulic quick coupler MultiFit "S"

Caractéristiques / Spécifications techniques

• Model: CX210E
• Series: CASE E-Series
• Operating weight: up to 22.3 t
• Engine: FPT NEF6 (F4HGE613Z*V), 6-cylinder turbo-charged diesel
• Rated power: 120.4 kW at 1800 min-1
• Emissions level: Stage V
• Standard booms: 5.7 m (standard), 8.7 m (long reach)
• Standard arm lengths: 2.94 m (standard), long reach arm 6.4 m; optional arm 2.40 m
• Hydraulic: electronically controlled pumps, multifunction auxiliary circuits, selectable work modes, auto power boost
• Undercarriage: sealed link chain, full overlap turntable bearing tub, steel triple grouser shoes (various widths available)
• Operator station: ROPS/FOPS, pressurized cab, 10" multifunction LED color monitor, heated suspension seat
• Telematics: SiteConnect module with 7 years myCASEConstruction subscription
• Maintenance intervals: 1,000 hour engine oil & fuel filter change interval; 5,000 hour hydraulic oil change interval; 2,000 hour hydraulic filter change interval
